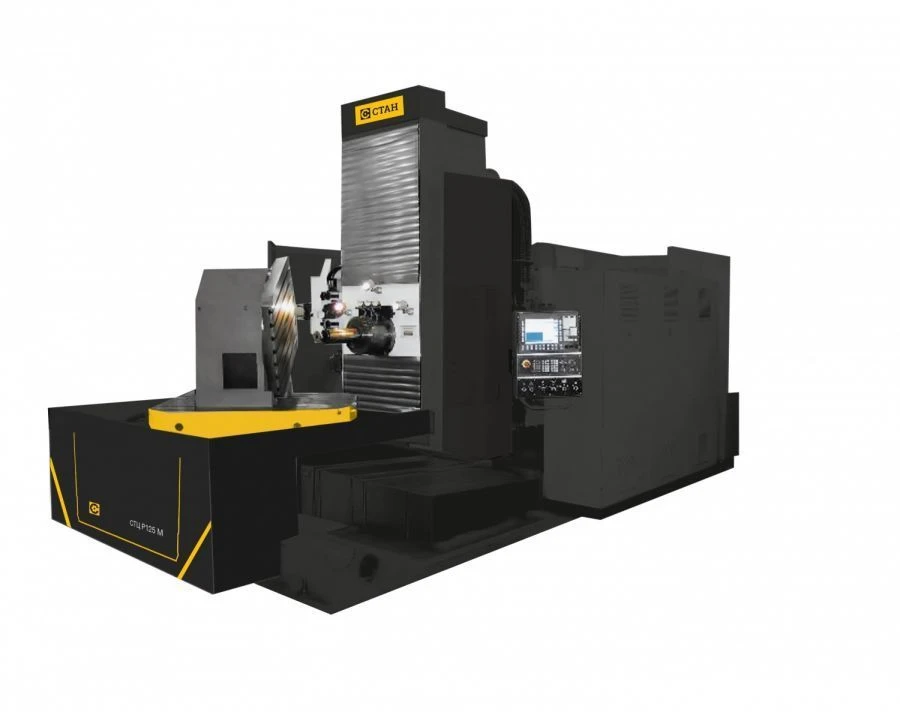

Milling machining centre STC H 125M
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The machine is made on the basis of the machine model IR1250, with a deep elaboration of nodes, with the following design changes: increasing the rigidity of base parts, equipping the machine with spiral conveyors of chips on the X and W axes, the use of double-slope telescopic protection on the W axis, the construction of a new stationary fence of cabinet type, which allowed to improve the tray system of leakage collection and provide a guaranteed sealing of the cutting zone.
Technical Specifications
| Type of product according to PP RF 616 | 5-axis horizontal machining centers |
|---|---|
| Length | 7200 mm |
| Width | 5500 mm |
| Height | 4300 mm |
| Machine type | Machining centre STC H 125M |
| Maximum spindle speed 2250, 2500*, 3000 | 2250; 2500*; 3000 |
| Diameter of boring spindle | 110; 130* mm |
| Maximum table torque in the B axis | 5000 nm |
| Working feed rate limits of the rotary table in the B axis | 1 .... 1080 deg/min |
| Table load capacity, kg | 6 000 kg |
| Table work surface size | 1100?1250; 1250?1250; 1250?1500; 1250?1400*;1400?1600; 1600?1800; 1600?2000 mm |
| Machine weight | 20000 kg |
| Overall dimensions (width/length/height) | 5 200 / 6 500 / 4 300 mm |
| Coolant supply via nozzles on the spindle headstock, | 100 l/min l |
| Positioning repeatability accuracy | 0;0025 mm |
| Axis positioning accuracy | 0;005 mm |
| Maximum tool length, | 400 mm |
| Maximum tool diameter | 125 mm |
| Capacity of instrument magazine, pcs. | SBVVBG pc |
| Maximum feed force in the X/Y/Z/W axes, | kn 12;5 / 10 / 10 / 10 / 15 |
| Rapid Travelling Speed in X, Y, Z, W axes m/min 15 | m/min 15 mm |
| Working feed rate limits in X, Y, Z, W axes | 1 .... 15000 mm/min mm |
| Maximum programmable movements, | mm: - x-axis (table transversely) 2000 - y-axis (spindle headstock vertically) 1220*; 16001) - z-axis (boring spindle) 710 - w-axis (stand longitudinally) 1600 mm |
| Maximum torque on the spindle, | 1700*; 2500 nm |
| Rated power of the spindle rotation drive | 28 kW |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
