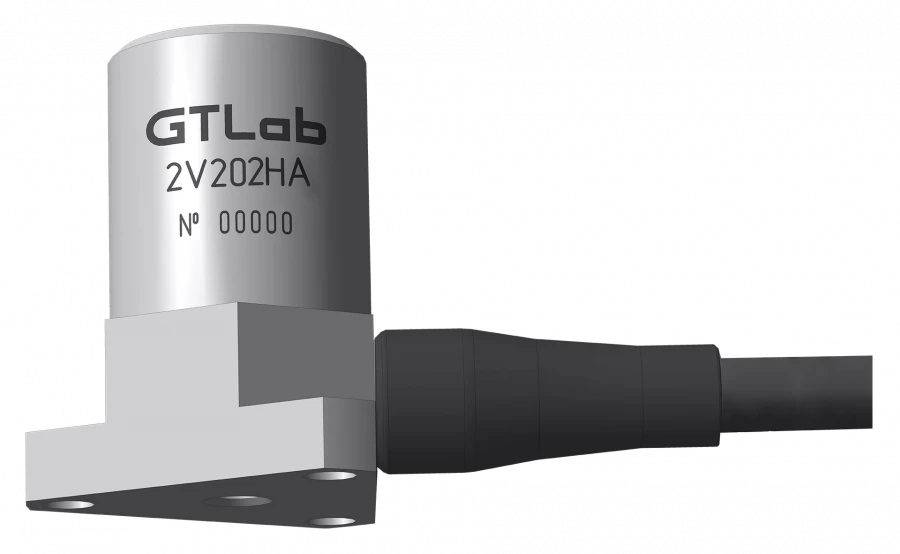

Vibration speed sensor 2V202HA

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Vibration velocity transducers with voltage output are electromechanical transducers with increased noise immunity. They are intended for measuring the vibration velocity signal of industrial equipment in conditions of strong industrial interference.

Specifications

Conversion factor at base frequency 80 Hz 5 ±0.5 mV/mm/second

Measured speed range 0,1 ...800 mm/sec

Operating frequency range of measured vibration velocity 5 ... 1 000 Hz

Unevenness of the frequency response with respect to the value at the base frequency of 80 Hz in the frequency range of 5 ... 1, ± 1 dB

Relative transverse conversion ratio < 5 %

Operating temperature range -50 ... +150°?

Coefficient of influence of ambient air temperature, within the limits of ± 0,1 %/°?

Level of RMS of natural noise reduced to the input < 0.02mm/sec.

Maximum output voltage with nonlinear distortion factor not more than 5 % ± 5 ?

Output impedance < 100 ohms

Power supply: ? voltage ? current + (20 ... 30) V ? < (7 ... 9) mA

Explosion protection 1Ex d IIC T6...T4 Gb, 0Ex ia IIC T6...T4 Ga

Weight (without cable) 120 ?

Housing material stainless steel

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
