Vibration electrodynamic test rig VSV-250-550
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

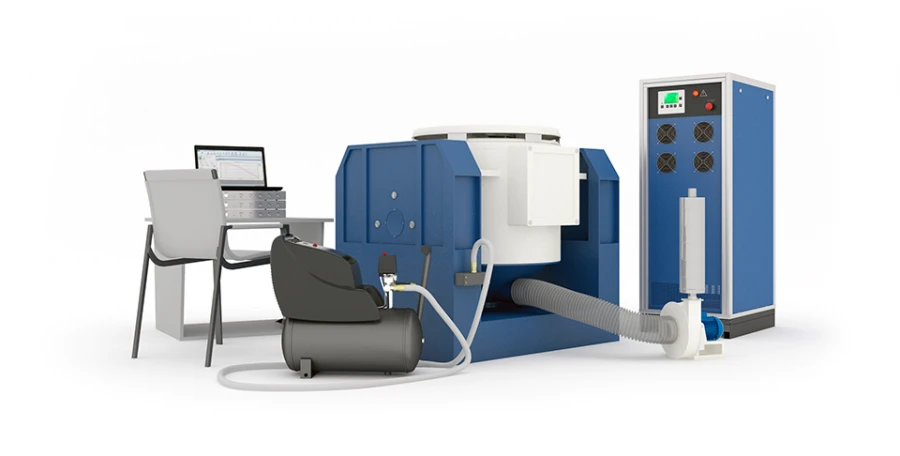

Electrodynamic vibration test rig
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 550 mm., frequency range 5-2000 Hz, displacement (amplitude) at zero load not less than 25 mm., acceleration (amplitude) at zero load not less than 595 m/s2, ejection force 50 kN., mass (maximum) load 800 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 550 mm., frequency range 5-2000 Hz, displacement (amplitude) at zero load not less than 25 mm., acceleration (amplitude) at zero load not less than 595 m/s2, ejection force 50 kN., mass (maximum) load 800 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
Specifications
Type of product according to PP RF 616
8.6.2
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Frequency range
5...2000
Displacement (amplitude)
25 mm
Speed (amplitude)
1.8
Acceleration (amplitude)
595
Maximum load
800 kg
Forcing force (sinusoidal)
50000
Forcing force (random broadband)
35000
Compulsive force (percussive classical)
100000
