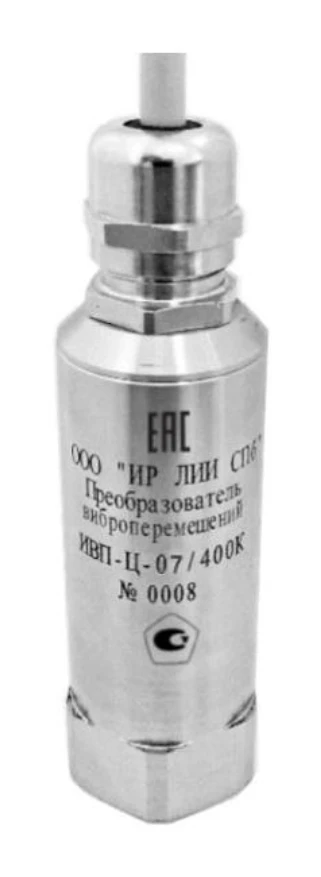

Vibration displacement transducer IVP-C

Vibration Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The CPI-C (cylindrical) provides measurement of low-frequency absolute vibration displacements of small level by double integration of vibration accelerations. IVP-C is installed on bearing housings, support structures of hydraulic generators, steel structures of the housing and stator core, on the turbine cover, as well as on other low-speed (slowly rotating) equipment. Purpose - measurement of absolute low-frequency vibration displacements. Measuring range: IVP-C 05/400 from 0,5Hz to 400Hz, IVP-C 07/400 from 0,7Hz to 400Hz. Signal type: current, volt. Type of connection: with connector, with built-in connecting cable.

Technical Specifications

Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Weight	265 g
Operating temperature range	-10...80 °C
Length	33 mm
Width	30 mm
Height	94 mm
Nonlinearity of amplitude response, not more than	2 %
IVP-C 0.7/400	0.7...400
IVP-C 0.5/400	0.5...400
Vibration displacement amplitude measurement range, µm	15...500
Relative transverse conversion coefficient, not more than	5 %
For voltage output, mV/µm	9
For current output, µA/µm	16
Limits of permissible deviation of conversion coefficient from nominal value under normal measuring conditions	3 %
IVP-C 0.5/400	0.5...150
IVP-C 0.7/400	0.7...150
Operating frequency range with non-uniformity of amplitude-frequency response not more than 5 per cent	2...150
Operating frequency range with non-uniformity of amplitude-frequency response not more than 8 per cent	150...400

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
