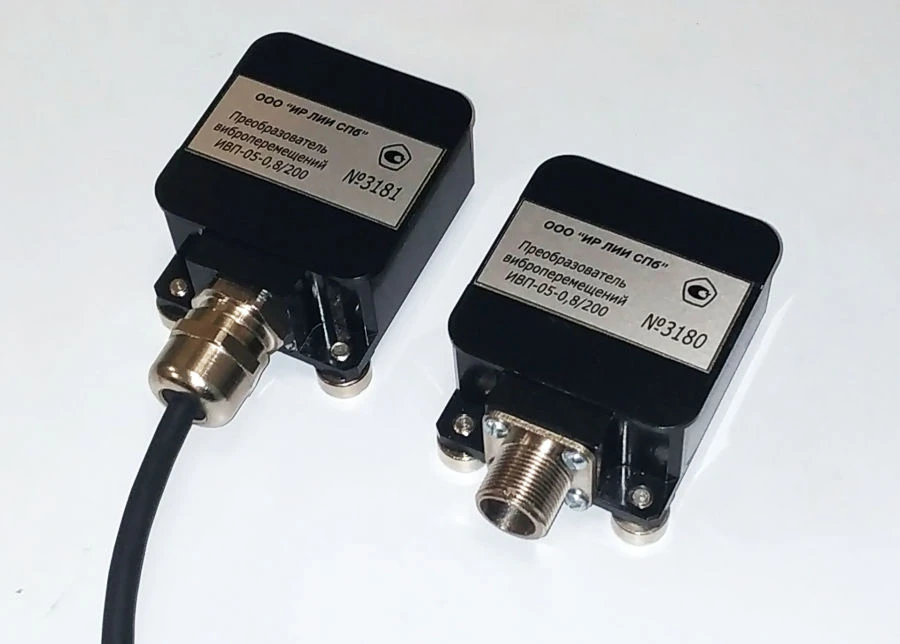

Converter of vibration displacements IVP
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose - measurement of absolute low-frequency vibration displacements. Measuring range: IVP 05/200 from 0,5Hz to 200Hz, IVP 08/200 from 0,8Hz to 200Hz, IVP 2/400 from 2Hz to 400Hz. Connection scheme: two-wire, three-wire, four-wire. Signal type: current or volt. Connection type: with connector, with integrated connection cable.
Specifications
By voltage 0...10V, mV/µm
10
By voltage, from -5V to +5V, mV/µm
10
By current 4...20 mA, ?A/?m
16
AFC irregularity in the operating frequency range, not more
5 %
Vibration displacement measurement range (amplitude), µm
15...500
Consumption current, mA max.
SBVVBG
IVP-0.5/200
0.5...150
IVP-0.8/200
0.8...150
IVP-2/400
2...200
IVP-0.5/200
0.5...200
IVP-0.8/200
0.8...200
IVP-2/400
2...400
Operating temperature range
-10...80 °C
Maximum length of output cable
100 m
Weight
130 g
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
