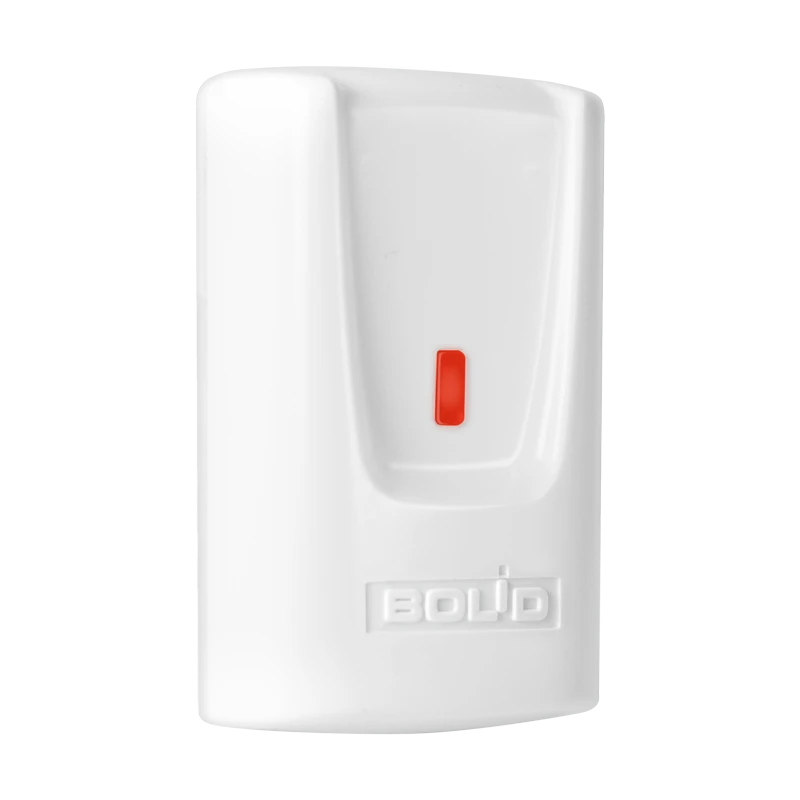

Vibrating Addressable Security Detector "S2000-V" ACDR.425139.001

Available for Import

Vibrating Addressable Security Detector "S2000-V" for Intrusion Prevention

Intrusion and Fire Detectors

Manufacturer: BOLID CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to detect an attempted deliberate destruction (burglary): concrete walls and floors at least 0.12 m thick, brick walls at least 0.15 m thick, wooden structures with a thickness of material from 20 to 40 mm, plywood structures at least 4 mm thick, chipboard structures at least 15 mm thick, metal safes, cabinets, doors and ATMs. Alarm notification is issued via two-wire communication line to the controller two-wire communication line integrated security system "Orion".

Specifications

Power supply (DPLS)

6 to 10.5 V

Average current consumption in standby mode

Not more than 3 mA

Average current consumption in alarm mode

Not more than 4 mA

Sensitivity

0.03

Maximum detectable vibration frequency

3200

Protected surface area (solid concrete, reinforced concrete, brick structure)

up to 30 m2

Protected surface area (wooden structure)

up to 12 m2

Protected surface area (metal cabinet, door, upper cabinet of ATM)

Up to 6 m2

Protected surface area (safe, bottom cabinet of ATM)

Up to 3 m2

Detectable tilt angle

5 and more grads

Protection degree of the shell according to GOST 14254-2015

IP30

Operating temperature range

-20 to +50 °?

Overall dimensions of the device

68x42x19,5 mm

Instrument weight

max. 0.05 kg

Average lifetime of the device

10 year

Number of power inputs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
