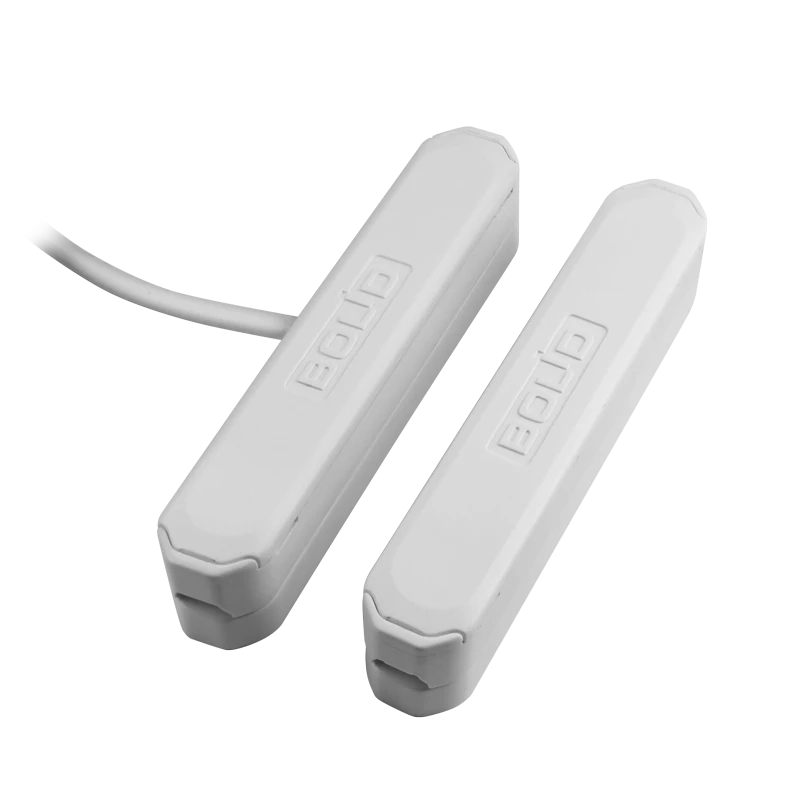

Security Magnetic Contact Sensor C2000-SMK Version 04 ACDR.425113.001-04

Available for Import

Security Magnetic Contact Sensor C2000-SMK Version 04 for Intrusion Detection

Intrusion and Fire Detectors

Manufacturer: BOLID CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Addressable magnetic contact intrusion detector "S2000-SMK ???.05" ????.425113.001-05 Addressable magnetic contact intrusion detector "S2000-SMK ???.06" ????.425113.001-06

Description

Applied in security alarm systems and designed to protect objects from unauthorised entry. Designed to work with controllers two-wire communication line as part of an integrated security system "Orion". Functions of detectors: monitoring the state of the protected object (open/closed door, window sash); transmission of notices to the controller of two-wire communication line, storage in non-volatile memory address exchange on the two-wire communication line, measuring the voltage value of the two-wire communication line in the place of installation.

Specifications

Power supply voltage (DPLS)

8 to 11 V

Consumption current

max. 0.5 mA

Guaranteed contact condition when the magnet and the processing unit are in the same plane (closed)

less than 10 mm

Guaranteed contact condition when magnet and processing unit are in the same plane (open)

More than 35 mm

Number of detectors to be connected in the DPLS

up to 127 pcs

Maximum active resistance of DPLS wires

Not more than 100 ohms

Minimum insulation resistance between DPLS wires

at least 50 kOhm

Protection degree of the shell according to GOST 14254-2015

IP40

Operating temperature range

-30 to +50 °C

Overall dimensions of the device (processing unit)

max. 71x13x9 mm

Overall dimensions of the device (magnet)

max. 71x13x9 mm

Wire length

0.2 m

Instrument weight

not more than 0.025 kg

Average lifetime of the device

10 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
