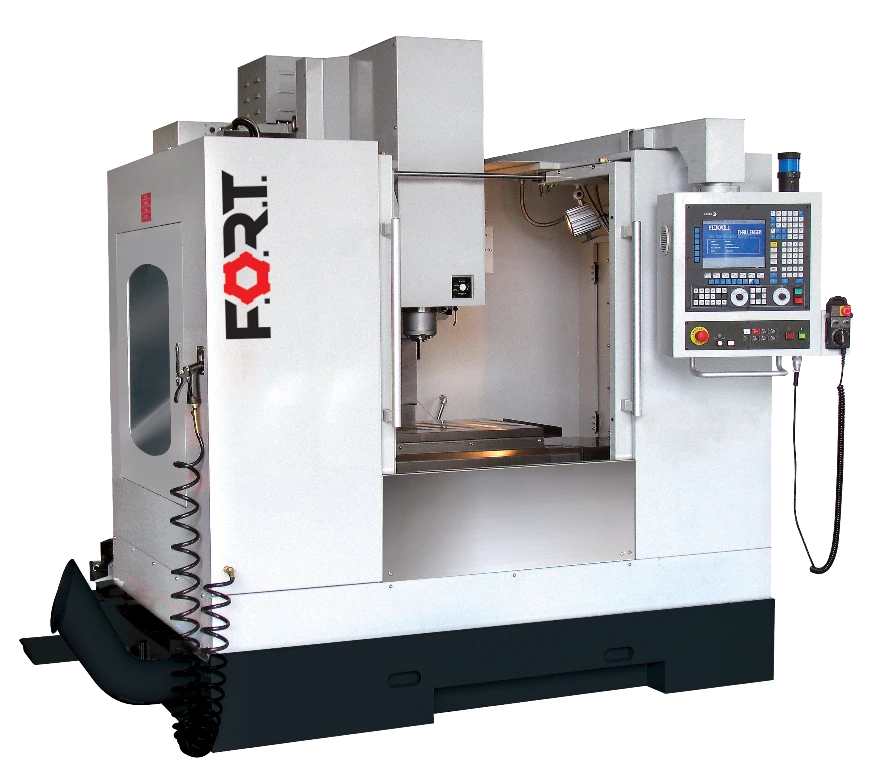

Vertical CNC Machining Center MM800 for Precision Parts Processing

Available for Import

Vertical CNC Machining Center MM800 for High-Precision Parts Processing

Metal Milling Machines

Manufacturer: BALTIYSKAYA INDUSTRIAL COMPANY OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: CNC vertical milling machining centre is designed for complex machining of parts made of various materials, including high-alloy steels and non-ferrous alloys. The machine is designed for milling, drilling, boring, threading with taps and thread milling cutters. Design features: -Vertical machining centre mod.

MM-800 is designed for high-speed machining of parts with high accuracy. -The bed is cast from fine-grained cast iron of "Mekhanit" brand, it has high rigidity and vibration resistance. -High-class linear guides allow the spindle headstock and table to move at a speed of up to 30 m/min.

-The basic version of the machine is equipped with a spindle with a maximum speed of 10,000 rpm. 10000 rpm. If necessary, it is possible to increase the maximum number of revolutions up to 15000 rpm.

-Tool magazine type "arm" for 24 positions with an additional manipulator, placed on one column...

Specifications

Type of product according to PP RF 616

Milling machines

Weight

6250 kg

Height

2950 mm

Width

2760 mm

Length

3838 mm

Main engine power

7.5/11 (11/15) kw

Spindle cone

ISO40

Spindle rotation ranges

10000 (12000/15000) rpm

T-slots

5×80×16 pcs/mm/mm

Maximum permissible table load

450 kg

Table dimensions

900x520 mm

Power consumption

30 kW

Air flow rate

300 l/min

Pressure

Repeatability X, Y, Z

±0.01 mm

Positioning accuracy X, Y, Z

±0.005 mm

Maximum tool length

300 mm

Maximum tool diameter with empty neighbouring socket

130 mm

Maximum tool diameter with full magazine

80 mm

Maximum tool weight

7 kg

Tool shank

BT/DIN

Tool change time

Type of store

arm

Number of places for 1 store

24 (30) pcs.

Number of tool stores

1 pcs

Accelerated movements X, Y, Z

30/30/24 m/min

Distance from spindle cone to table

100-600 mm

Z-axis travel

500 mm

Moving in the Y axis

500 mm

Moving in the X axis

800 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
