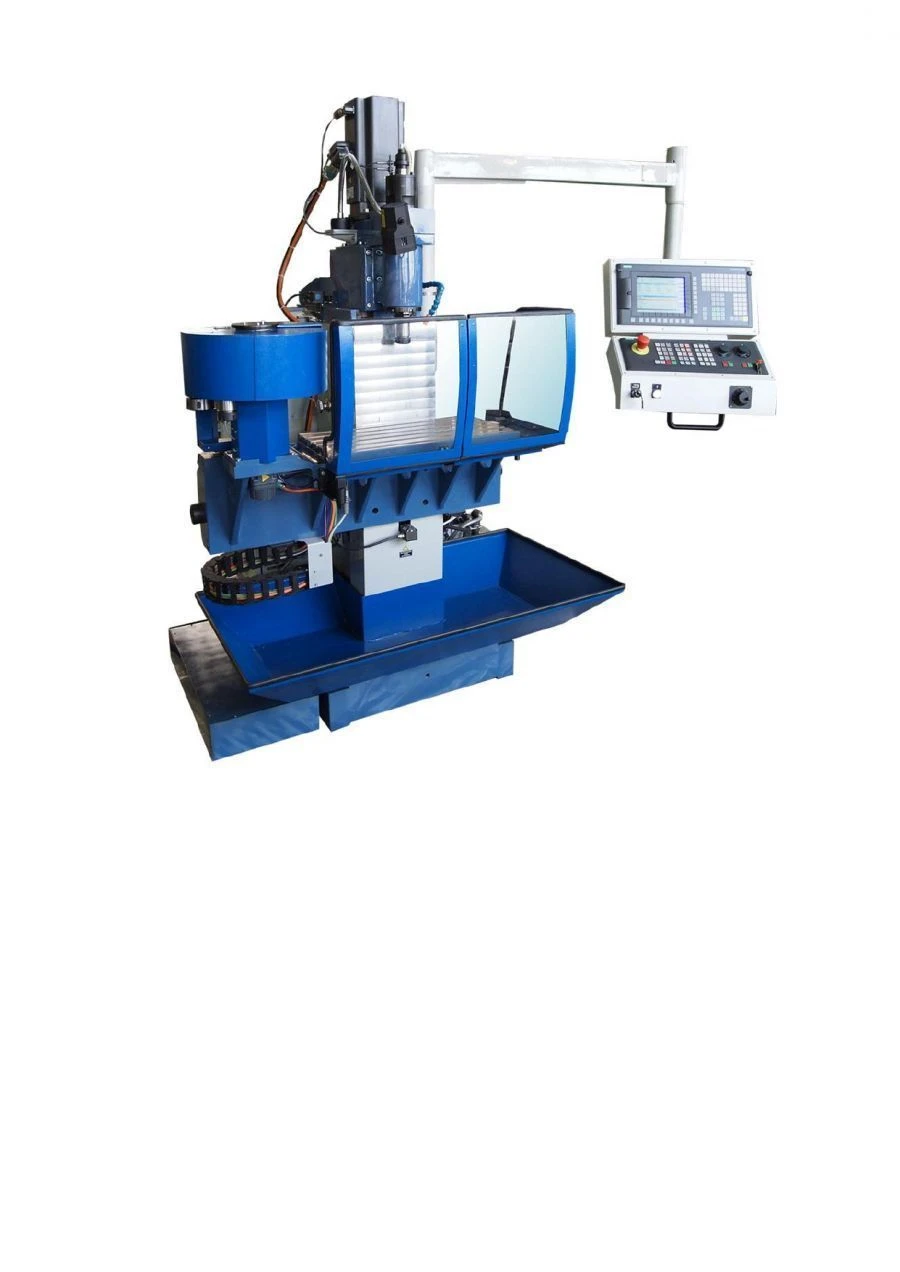

Universal Milling Machine with CNC Tool Magazine FS-300-04-1 for Precision Milling

Accuracy class according to GOST 8-82 P
Dimensions of the working surface of the table, mm 300x630
Main motion drive motor power, kW 7,5
Vertical spindle speed range, rpm 30-3000
Type of CNC - SINUMERIK 808D of "Siemens" company.
Spindle cone 40AT5
Feed range, mm/min 10-5000
Number of installed tools, pcs 6
Overall dimensions of the machine (length, width, height), mm 1475x1565x2075
Machine weight, kg 1350
