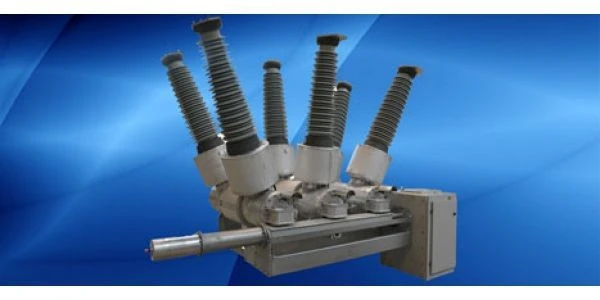

VEB-UETM®-110 series gas-insulated tank circuit breakers

The gas-insulated tank switch VEB-UETM®-110 is designed for switching electrical circuits in normal and emergency modes, as well as for operation in reclosing cycles in AC networks of 50 Hz frequency with rated voltage of 110 kV in conditions of temperate and cold climate outdoors and in closed rooms. The switch is a switching device consisting, depending on the version, of three or two poles on a common base (three- or two-pole version), controlled by a common spring actuator type PPrK-UETM®, or poles on separate bases (single-pole version), each pole controlled by a separate actuator type PPrK-UETM®.
