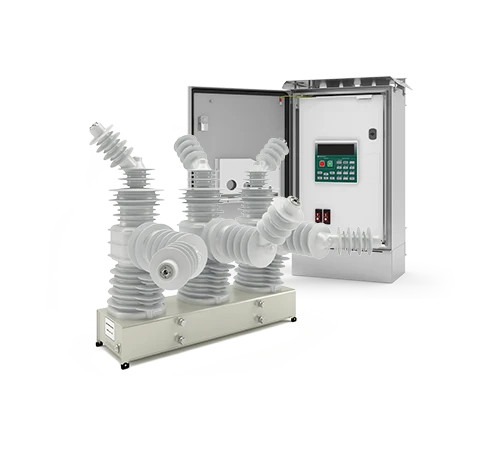

Vacuum circuit breaker (recloser) Rec35_Smart

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Vacuum switch (recloser) Rec35_Smart series for rated voltage 35 kV, rated current 1250 A, rated tripping current 20 kA, climatic version UHL, placement category 1, consisting of switching module OSM35_Smart three-pole version with phase electromagnetic drives and control cabinet RC7 with control module CM_15 series as an integrated protection device, automation, control and monitoring designed for switching of electric circuits in normal and emergency modes in three-phase alternating current networks with frequency 50 Hz with isolated, compensated and earthed neutral.
Recloser can be used for automation of power lines, retrofit or new construction as a part of outdoor outdoor switchgear at distribution complex substations, at railway traction substations, as well as for sectionalisation of power lines intended for power supply of traction ....

Technical Specifications

Rated tripping current 20000 A
Warranty period of operation 7 years
Control cabinet weight Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kg
Mechanical resistance life, cycles "HE" 20000
Weight of the switching module 86 kg
Overall and connection dimensions (WxHxH) of the control cabinet 545x740x290
Overall connection dimensions (WxHxH) of the switching module 1025x835x760
Enclosure protection degree according to GOST 14254 of the control cabinet IP55
Enclosure protection degree according to GOST 14254 of the switching module IP55
Range of permissible supply voltages (DC/AC/rectified current) 85...265 V
Degree of contamination according to GOST 9920 IV
Climatic execution and placement category according to GOST 15150 UHL1
Electrodynamic resistance current (highest peak) 51000 A
Thermal resistance current flow time 3
Thermal resistance current (RMS value of current during its flow time) 20000 A
Rated current 1250 A
Insulation level according to GOST 1516.3 ?
Highest operating voltage 40.5 kV
Nominal voltage Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kV
Type of arc suppression medium Vacuum

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
