Vacuum gauge thermoresistive digital VT-RC01

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

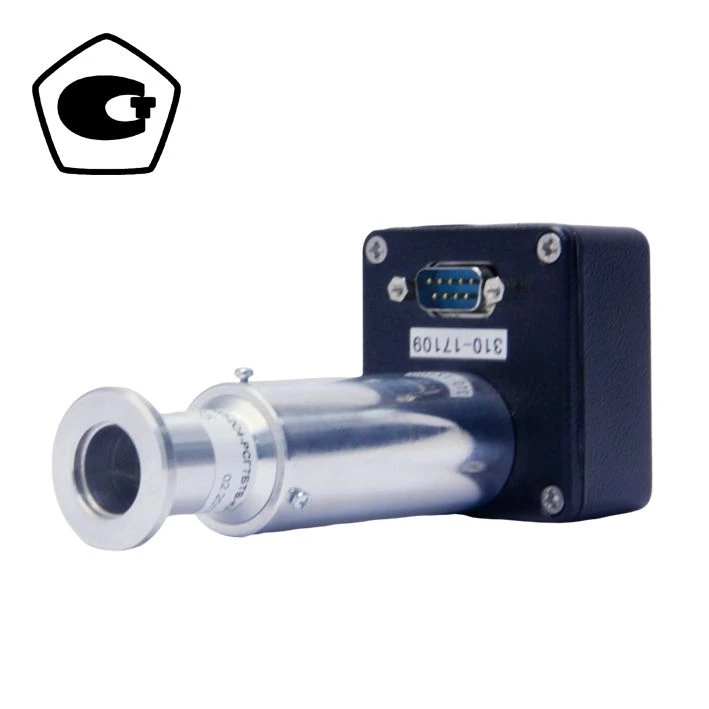

Vacuum gauge thermoresistive digital VT-RC01

Description

Vacuummeter thermoresistive digital VT-RC01 is designed to convert absolute pressure into an electrical digital signal.
Operating range of pressures from 1-10-² to 1-10? Pa.
Limits of permissible relative error of absolute pressure measurements ±30 %
VT-RC01 contains:
- built-in galvanic isolation on power supply circuits and data transmission interface
- built-in sensor DTV-01 (thermoelectric, Pirani type), KF16 for flange diameter D= 30mm.
Vacuum gauge VT-RC01 is used in automated vacuum systems for industrial, experimental and educational purposes, as well as for completion of non-automated installations.

Thermoresistive digital vacuum gauge VT-RC01
- entered in the State Register of Measuring Instruments (SI State Register) - Registration No. 81993-21.
- supplied with verification in FBU "Rostest-Moscow"

Operating manual available on request: LCMK.310.00.00.00.00.000 VTRC (00 type KF16 = 30mm flange)

Specifications

Power consumption, max. 6,0 W

Rated supply voltage 24 (±10 %) V

Interface RS-485

Data transfer protocol ModBus RTU

Power supply voltage 18-36 V

Type of pressure sensor DTV-01

Connection type KF16 for flange diameter D= 30mm

Overall dimensions (diameter × length), not more than 136×55×60 mm

Weight, not more 0,25 kg

Execution 00 type KF16 TU 26.51.5-001-17555009-2019 GOST 15150-69 GOST 15543-70 at normal values of climatic factors of external environment - UHL for product placement category 4.2.

Dustproof Yes / No - The casing of the device, with the electronics unit placed inside it, is made of aluminium alloy and complies with the standard IP 21 according to GOST 14254-2015, IP 21 according to GOST 14254-2015, III class of protection against electric shoc

Warranty period 1 a

Climatic designs GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
