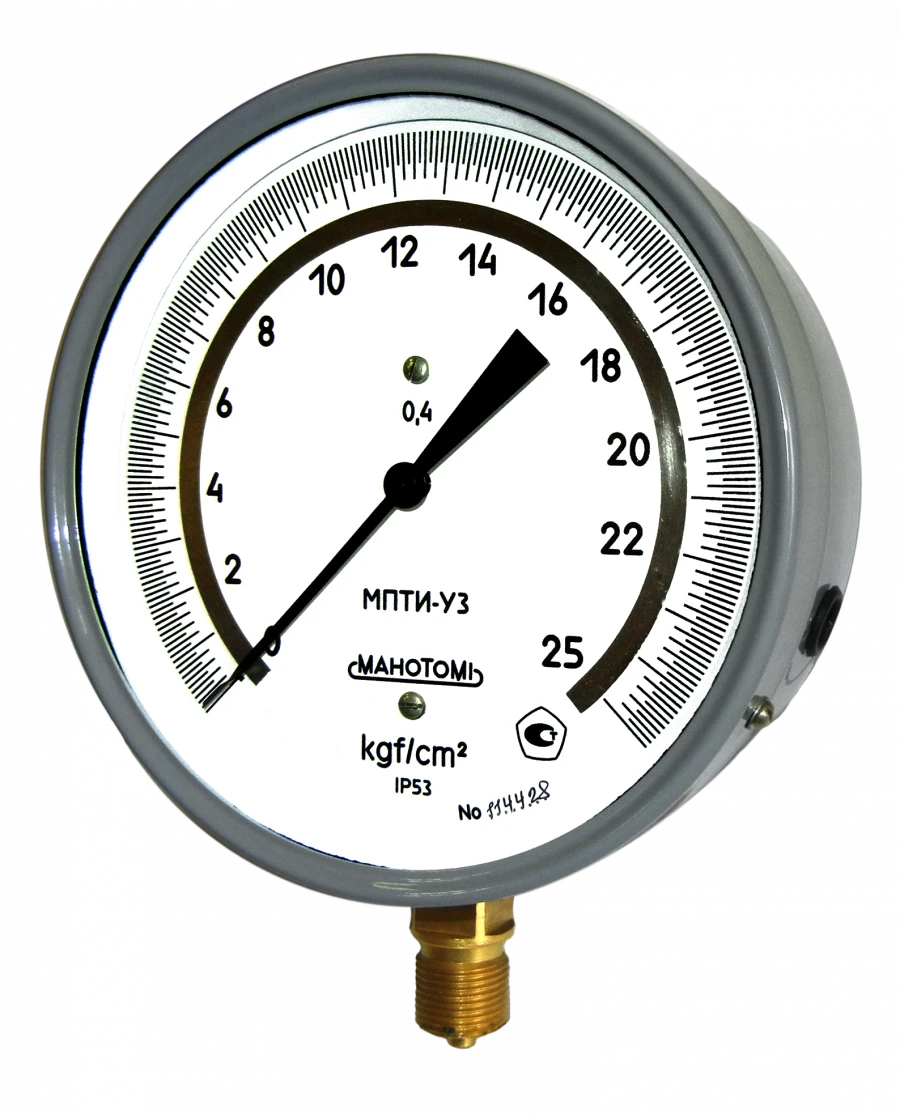

Pressure gauge with mirror scale MPTI 0.4 160MM
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Manometers, vacuum gauges and manovacuum gauges showing for precise measurements MPTI, VPTI, MVPTI are designed for measuring gauge and vacuum pressure of non-aggressive, non-crystallising liquids, gas and steam, including oxygen and application in the spheres of state metrological control and supervision (SMC&S) and state system of industrial devices and means of automation (GSP).
Instruments of accuracy class 0.4 are available with zero correction only on the housing.
Devices of accuracy class 0,4 are allowed to be used as reference measuring instruments, provided that the necessary ratios of the limits of tolerance of basic errors with working measuring instruments are observed.
Instruments of accuracy class 0.4 are available with zero correction only on the housing.
Devices of accuracy class 0,4 are allowed to be used as reference measuring instruments, provided that the necessary ratios of the limits of tolerance of basic errors with working measuring instruments are observed.
Specifications
Inspection interval
2 a
Warranty period
3 a
Degree of protection
IP53
Type
with mirror scale
Mark
MPTI
Material of parts
glass: silicate tubular spring: copper alloy; iron-nickel alloy holder: copper alloy; stainless steel mechanism: copper alloy; stainless steel; steel 08kp
Vibration protection
V4 (5 to 120 Hz with an amplitude of 0;15 mm and an acceleration of 19;6 m/s²; and 120 to 250 Hz with a vibration acceleration of 3 m/s²)
Fitting threads
M20*1;5-8g; G1/2-b (G1/2; K1/2 for reading ranges up to 600 kgf/cm²)
