UV-532A travelling wave lamp

Microwave Tubes & Amplifiers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The continuous running wave lamp is designed to work as an output amplifier of UHF signals in complexes of electronic countermeasures.

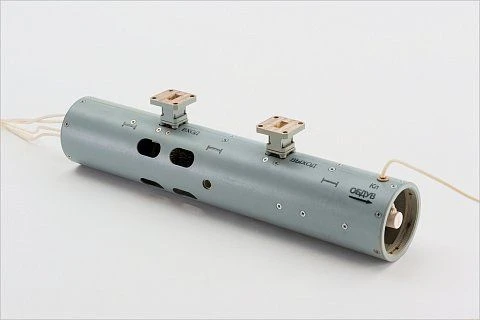

Structural design: a product of ceramic-metal construction, packaged with a magnetic periodic focusing system, with flexible electrode supply leads and waveguide energy input and output cross-section 8x16 mm.
LBV cooling is forced air cooling with undried air on blowdown.

Specifications

Filament current

0.6...1.1 A

Weight

3 kg

Operating frequency range

13...18

Continuous power output

100...200 W

Output power in the operating frequency range in the absence of input power

0.0004 W

Ready time

180
