UNOT preprocessor module

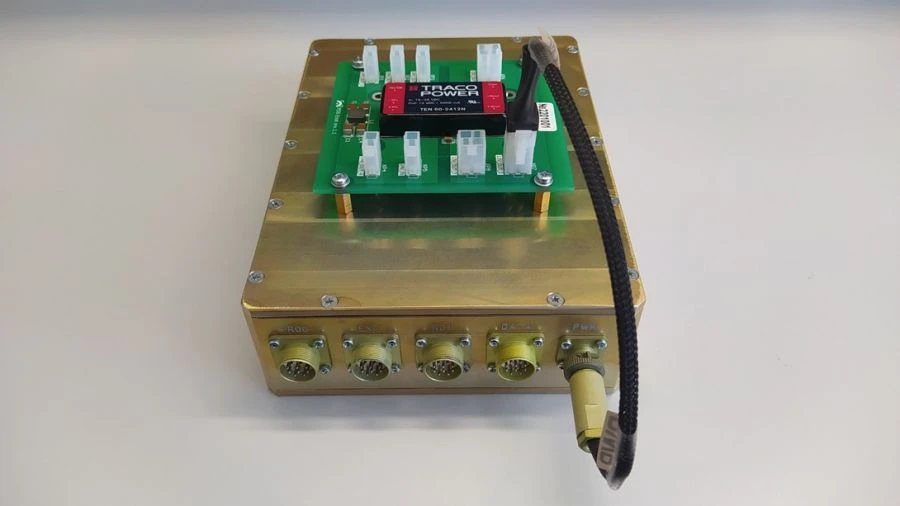

Yenot preprocessor module RAJZh.468172.005 is used in the product Radar Radar Station (RLS) Yenot RAJh.464412.002, Uran-Yenot RAJh.464412.005, Yenot Plus RAJh.464412.007. The product is also available for use in radars of similar functionality.
Purpose of the Product:
a) formation of a time diagram of radar operation in accordance with the signal profiles;
b) formation of 100 MHz reference signal;
c) formation of the transmitter signal;
d) reception and analogue-digital conversion of the signal in 4 receiving channels in accordance with the time diagram;
e) formation of transmitter and receiver strobe signals for the control unit of radio-frequency radar modules, LVDS signal type;
f) formation of control commands for the CU and reception of CU telemetry via RS-485 interface (921 600 bps);
g) signal pre-processing in accordance with the time diagram and formation of radar information packets;
h) transmission of radar information packets via 1000Base-T Ethernet IEEE 802.3 interface.
