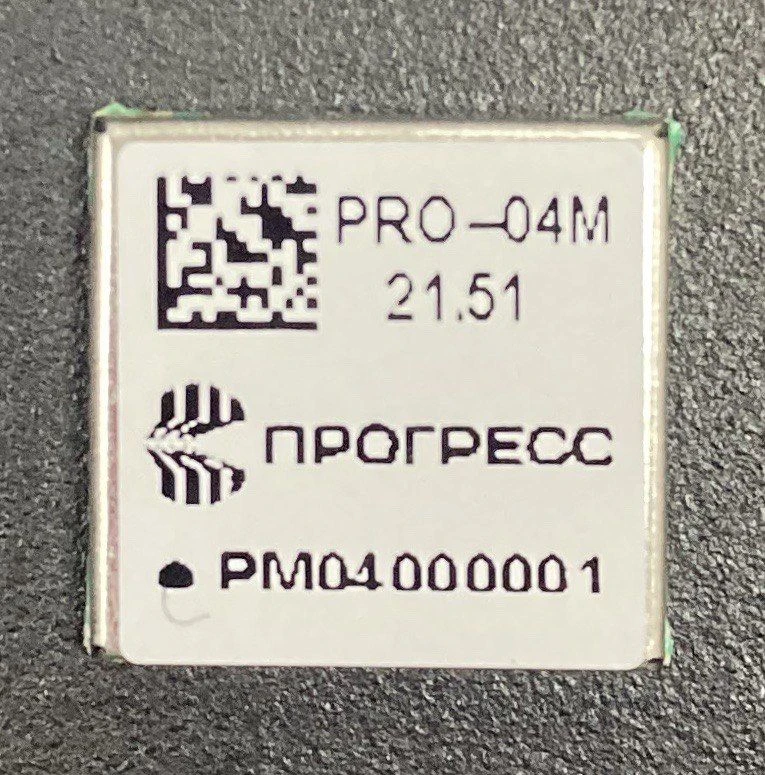

Navigation module GLONASS/GPS/SBAS/Galileo - PRO-04M

Radar & Navigation Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Module navigation GLONASS/GPS/SBAS/Galileo - PRO-04M ILTA.464346.008, is designed to measure the current navigation parameters using signals of navigation spacecraft GNSSS: GLONASS, GPS, Galileo, determine on their basis the location coordinates in the coordinate systems PZ-90.11
and WGS-84 velocity vector and synchronisation of the internal time scale of the equipment with the national coordinated time scale UTC(SU), coordinated time scale UTC(USNO), system time scale GLONASS, system time scale GPS when working on GNSS signals: GLONASS, GPS, Galileo and information exchange with external equipment by means of UART interfaces.

Specifications

Number of channels 44 pc

Received GNSS signals L1 GPS C/A, L1 GLONASS ST, GALILEO E1(B,C), SBAS L1

Modes of operation Autonomous, differential

Accuracy in autonomous mode (GLONASS +GPS), RMS: Planned coordinates 2.5 m

Accuracy in autonomous mode (GLONASS +GPS), RMS: Altitude 4 m

Accuracy in autonomous mode (GLONASS +GPS), RMS: Speed 0.03

Accuracy in autonomous mode (GLONASS +GPS), RMS: Second time stamp (1PPS) 30

Accuracy in differential mode (in plan), RMS 1.5 m

Interfaces 2×UART

Average MTBF, not less than 5000

Exchange protocols Binary, NMEA 0183, RTCM SC-104

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
