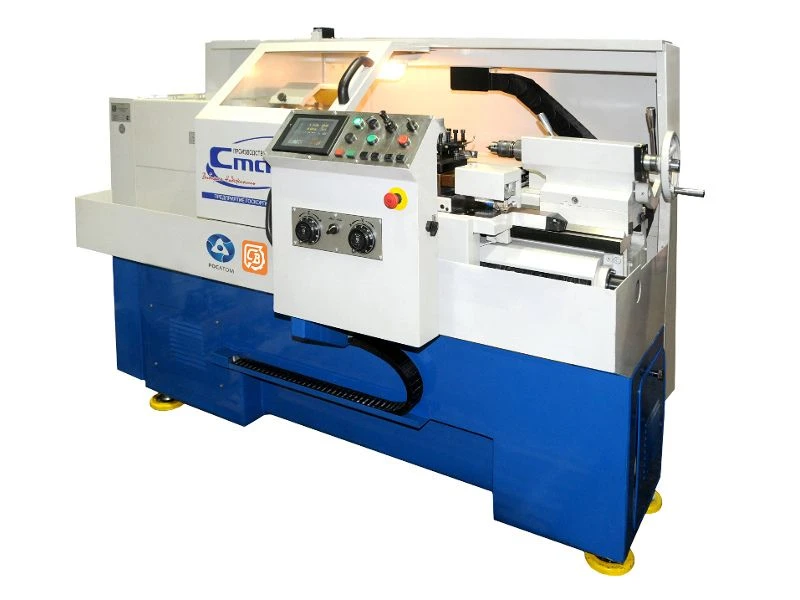

Universal turning lathe with operational programme control SAMAT 400 "Vector"
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Intended purpose
The line of universal lathes with mini program (operational) control is represented by models Samat 400 SC, MC with maximum diameter of machining above the bed 400 mm and RMC 750 and 1000 mm. The machines are equipped with an original control system based on a programme controller and drives for X and Z axes of the Japanese company OMRON.
Two versions are possible: accuracy class P (increased) and accuracy class B (high) according to GOST 8-82.
The machines are delivered with commissioning and operator training.
The machines are designed for a variety of turning operations in one-man, small batch and serial production. While retaining all the advantages of a universal machine, the machine allows automatic operation: the programme can be saved while the operator is machining the first part, or it can be entered using a wide range of micro-cycles. When equipped...
Technical Specifications
| Type of product according to PP RF 616 | Turning machining centers (single and multi-spindle) |
|---|---|
| Tapered bore in spindle | Morse 6 mm |
| Speed of rapid strokes in automatic/manual mode, mm/min - longitudinal strokes | 7000/6000 mm |
| Speed of fast strokes in automatic/manual mode, mm/min - transverse strokes | 3500/3000 mm |
| Largest diameter of the product to be installed above the bed | 400 mm |
| Largest diameter of the workpiece to be installed above the slide | 200 mm |
| Length of the product to be installed | 1500 mm |
| Spindle bore diameter | 45 mm |
| Height of tool in toolholder | 25 mm |
| Spindle speed limits, min-1 | 25...2500 |
| Traversing feed rate limits, mm/rev | 0.01...10 mm |
| Traversing feed rate limits, mm/rev | 0.005...5 mm |
| Discreteness of displacements in manual mode - longitudinal | 0.01 mm |
| Discreteness of movements in manual mode - transverse movements | 0.005 mm |
| Thread pitch limits - metric, pitch in mm | 0.25...56 mm |
| Power of electric motor of main motion, kW | 5.5 kW |
| Overall dimensions of the machine, not more, mm: - length | 2600 mm |
| Overall dimensions of the machine, not more than, mm: mm - width, mm | 1220 mm |
| Overall dimensions of the machine, not more, mm - height, mm | 1595 mm |
| Machine weight | 1950 kg |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
