Universal press PUM-60M

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

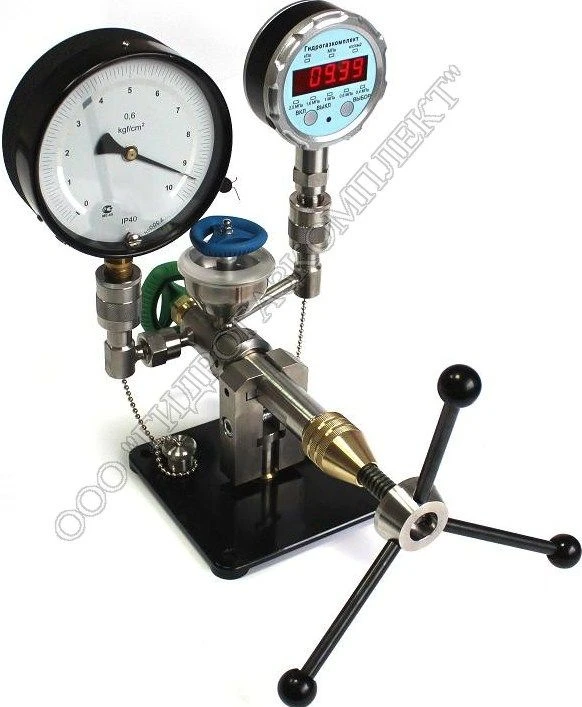

The universal small-size press is used for setting the required hydraulic or pneumatic pressure, rarefaction for verification of pressure measuring devices (pressure gauges, manometers, vacuum gauges, manovacuum gauges, difmanometers, etc.) by means of comparison of readings, sample readings, samples, etc.) by the method of comparison of readings, exemplary means of measurement with the verified one, for pressure testing of tightness of various technical products and systems (cocks, gate valves, valves, etc.), as well as a mobile source of pressure setting for laboratory and production needs, not requiring the connection of external utilities.

Specifications

Material Stainless steel 08X18H, Titanium, Silicon Nitrite

Type Portable; Stationary

Medium for pressure transmission Air; Water; Oil; Alcohol

Connection Self-supporting chuck

Overpressure (hydraulics) 60 MPa

Permissible vacuum setting range 0-0,07 MPa

Displacement volume of the press piston chamber 47.5 cm3

Объем жидкости, заливаемой в резервуар 145 cm3

Ambient air temperature -20 ÷ +50

Length 350 mm

Width 275 mm

Height 185 mm

Weight 8.5 kg

Ambient air temperature -20 ÷ +50

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
