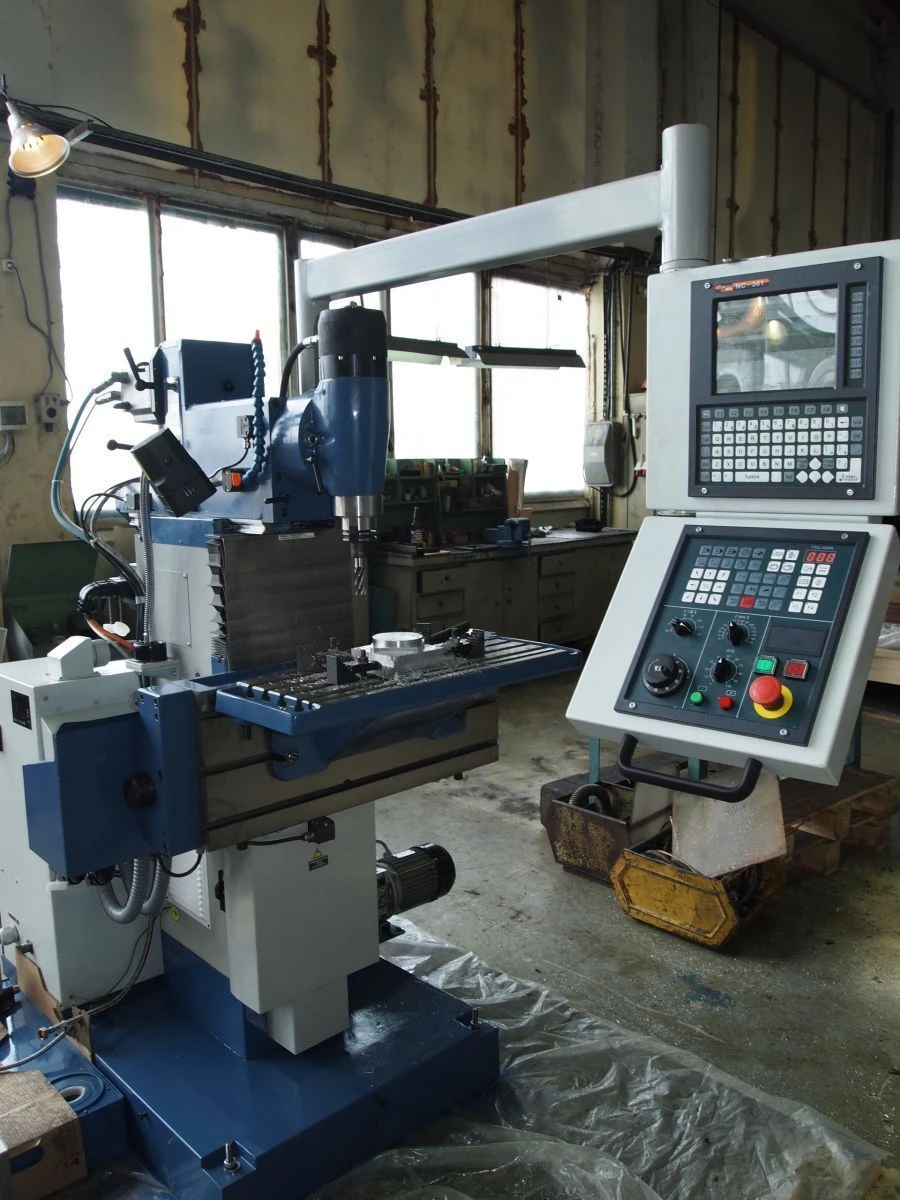

Universal Milling Machine with CNC by Balt-System FS-300-03-2 for Precision Machining

Accuracy class according to GOST 8-82 P
Dimensions of the working surface of the fixed angle table, mm 350x630
Main motion drive motor power, kW 5, 5
Horizontal spindle speed range, rpm 15-3000 (30-6000 optional)
Vertical spindle speed range, rpm 15-3000 (30-6000 optional)
Type NC-210 CNC of "Balt-System" company
Spindle cone 40AT5
Feed range, mm/min 10-5000
Overall dimensions of the machine (length, width, height), mm 1420x1400x2055
Machine weight, kg 1000
