Available for Import

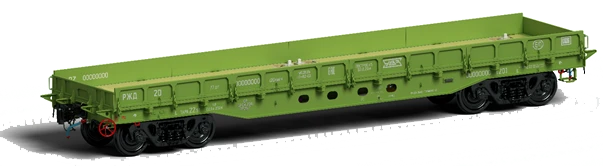

Universal flat wagon model 13-192-02
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The advantage of the new flat wagon is the increased load capacity up to 77 tonnes. The new flat wagon is equipped with hinged fitting stops, which in case of obstruction of cargo placement on the wagon are tilted into the groove, taking the position below the floor level. Also the applied stops provide stability against tipping of the empty container in case of wind loads.
Technical Specifications
| Type of product according to PP RF 616 | Railroad type flat cars |
|---|---|
| Width of platform on forest rack brackets | 3141 mm |
| Frame width at side beams | 2870 mm |
| Platform length along coupling axes of couplers | 14620 mm |
| Platform base | 9720 mm |
| Number of axles | 4 pc |
| Weight of load evenly distributed in the middle of side beams at length of 4,3 m, tonne, not more | 62 t |
| Weight of load evenly distributed in the middle of side beams at length of 3 m, tonnes, not more | 45 t |
| Lifting capacity at evenly distributed load, tonnes, not more | 77 t |
| Frame length at end beams | 13400 mm |
| Minimum permissible tare weight in operation | 20.64 t |
| Tare weight | 22.5 t |
| Number of fitting stops | 8 pc |
| Track width | 1520 mm |
| Design speed | 120 |
| Dimension according to GOST 9238 | - bodies 0-VM; - bogies 02-VM |
| Number of containers carried by the platform, of the size according to GOST R 53350 (ISO 668) | - 1EEE, 1EEE (maximum gross weight 36 tonnes) 1**; - 1AAA, 1AA, 1A, 1A, 1AX (maximum gross weight 36 tonnes) 1; - 1CC, 1C, 1CX (maximum gross weight 36 tonnes) 2. pc |
| Static linear load, tf/m (kN/m), not more | 6,84 (67,1) |
| Design static axial load, kN (tf) | 245 (25) |
| Height of platform with raised sides | 1826 mm |
| Platform height to the level of the floor decking | 1327 mm |
| Floor area | 38 |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
