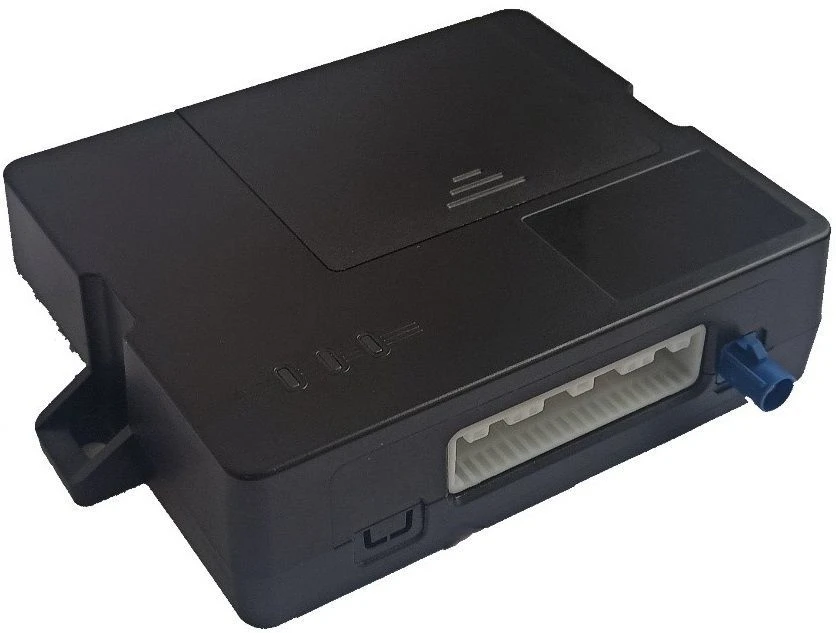

Unit UVEOS-07 GTIYA.464425.032 from the set "Intelligent navigation terminal UVEOS "HORIZONT A-2.1.7 GTIYA.464425.001-07".

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Unit UVEOS-NA GTIA.464425.023 from the set "Intelligent navigation terminal UVEOS "HORIZONT A-2.1.2 GTIA.464425.001-02".

The unit UVEOS-07 GTIYA.464425.032 from the set "Intelligent navigation terminal UVEOS "HORIZONT A-2.1.7 GTIYA.464425.001-07" is designed to determine the coordinator of the electric vehicle..001-07" is designed to determine the coordinates, speed and direction of the vehicle using signals of global navigation satellite systems, to initiate in automatic or manual mode and transmit a message about the vehicle in case of road traffic and other accidents, and to provide two-way voice communication with emergency operational services via mobile radio telephony networks and (optionally) satellite communication.

Technical Specifications

Product life	7 a
Supported interfaces	RS-485 (1 pc.), CAN (2 pcs.)
Number of digital inputs	2 pc
Number of digital outputs	3 pc
Nominal battery voltage	3,7 ?
Capacity of the built-in battery - not less than	1800 mAh
The product operates from the vehicle's power supply system with a nominal voltage of	12 V or 24 V
Internal non-volatile memory	2 Gbit.
UMTS frequency range	900/2100 MHz
GSM frequency bands	3G (900/2100) MHz; 2G (900/1800) MHz
GNSS signal tracking and navigation solution output at the level of useful signal at the antenna input (at the input of the ante	minus 180 dBW
Searching (detecting) GNSS signals at the level of useful signal at the antenna input (at the input of the antenna amplifier)	minus 163 dBW
Accuracy (at confidence level 0.95) of velocity determination	0.1 m/s
Accuracy (at confidence level 0.95) of height determination, not more than	15 m
Accuracy (at confidence level 0.95) of determination of planned coordinates, not more than	15 m
Time interval of navigation data update	1
Number of tracking channels of GLONASS/GPS/SBAS/Galileo receiver	44 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
