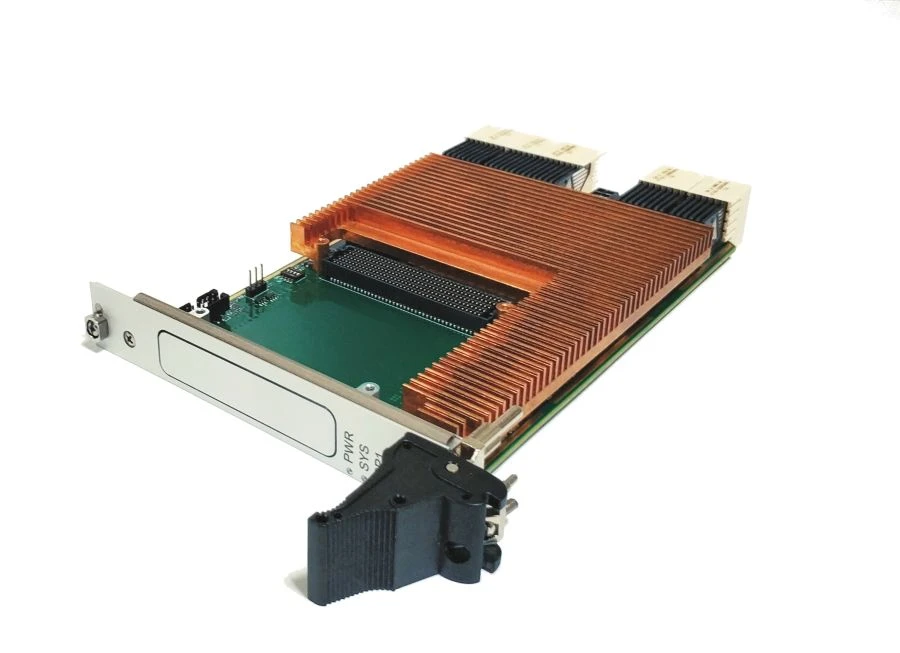

Computational module FPU502-04 (IMES.467414.007-03)

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
The product is designed for building high-performance industrial systems based on CompactPCI Serial platform with parallel digital data processing in real-time mode. Functional capabilities of the product are based on the use of programmable logic integrated circuit (hereinafter FPGA) family Kintex UltraScale (Xilinx). Due to the possibility of reconfiguration of the product can be used in solving a wide range of problems, including:-radar and radio navigation, SDR systems;-data encoding/decoding;-streaming processing of audio and video information;-high-speed data transmission, implementation of network protocols;-computing based on neural networks, machine learning.

Technical Specifications

System bus PCIe x8 Gen3
The main computational resource is Kintex UltraScale FPGA family XCKU115-2FLVA1517I
Reconfiguration Development of own FPGA configuration for specific tasks; possibility of debugging of developed FPGA configuration via JTAG and UART; replacement of FPGA configuration file via JTAG or PCIe.
DDR4 RAM Two 4 Gbyte channels
Non-volatile NOR flash memory 1 Gbyte for FPGA configuration file storage; 1 Gbyte for user data
Ethernet device synchronization system (for backplanes with full mesh topology) Armoured glass
Signals for the rear I/O module Interface MGT x8; input for clock signal; two inputs of external synchronisation; two outputs of external synchronisation
Service chip XC2C512 CoolRunner-II
Possibility to connect an external battery to store the FPGA configuration encryption key Armoured glass
Operating temperature range From minus 40 to plus 85 C
Standards support PICMG CPCI-S.0 R2.0; PCI Express Base Specification, rev.3.0; ANSI/VITA 57.1-2010

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
