Ultrasonic water meter

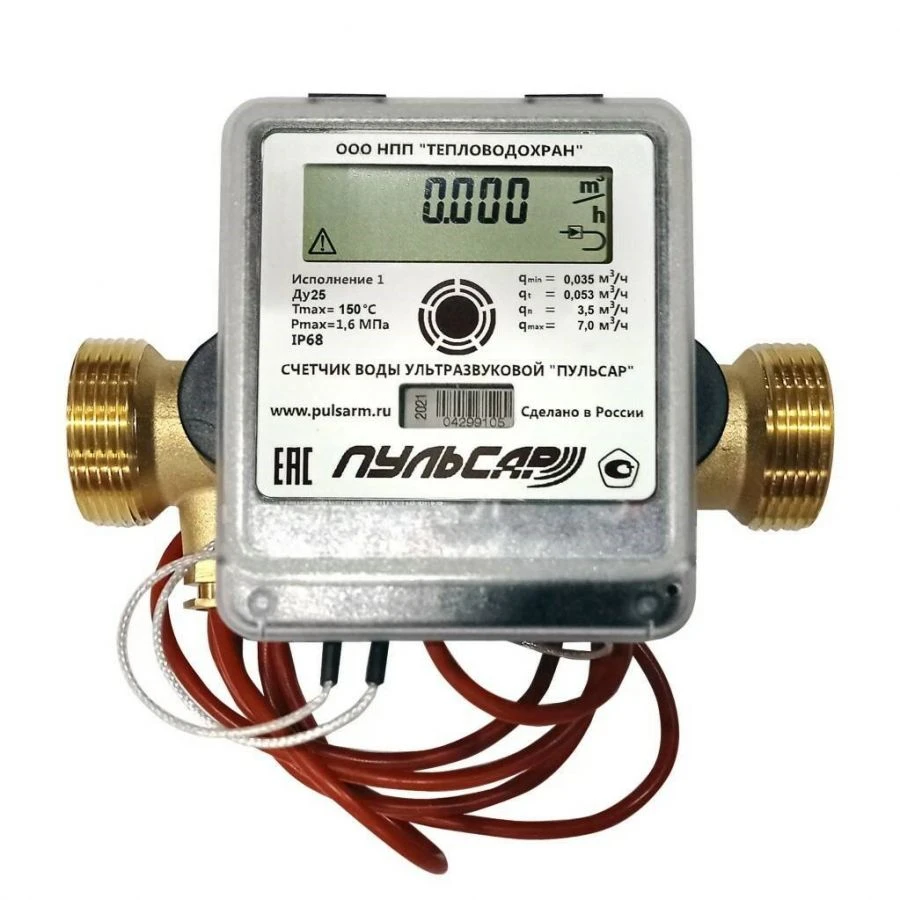

Water ultrasonic counters "Pulsar" (hereinafter - counters) are designed to measure the volume of water flowing through the pipelines of hot and cold water supply systems and network water flowing through pipelines of heat supply systems. According to the principle of operation the meter belongs to time-pulse ultrasonic devices, the operation of which is based on measuring the difference of ultrasonic signals passing time in the direction of liquid flow in the pipeline and against the flow. Water meters with reverse flow detection without metrological characteristics standardisation can be produced on request.The meter has a non-volatile memory.The archive depth is up to 60 monthly, up to 184 daily and up to 1488 hourly records.The non-volatile memory stores the event log containing information about errors.The meters are supplied both without interfaces and with interfaces: RS485, M-Bus, pulse output, radio channel. The choice of interface is made when ordering the device.
