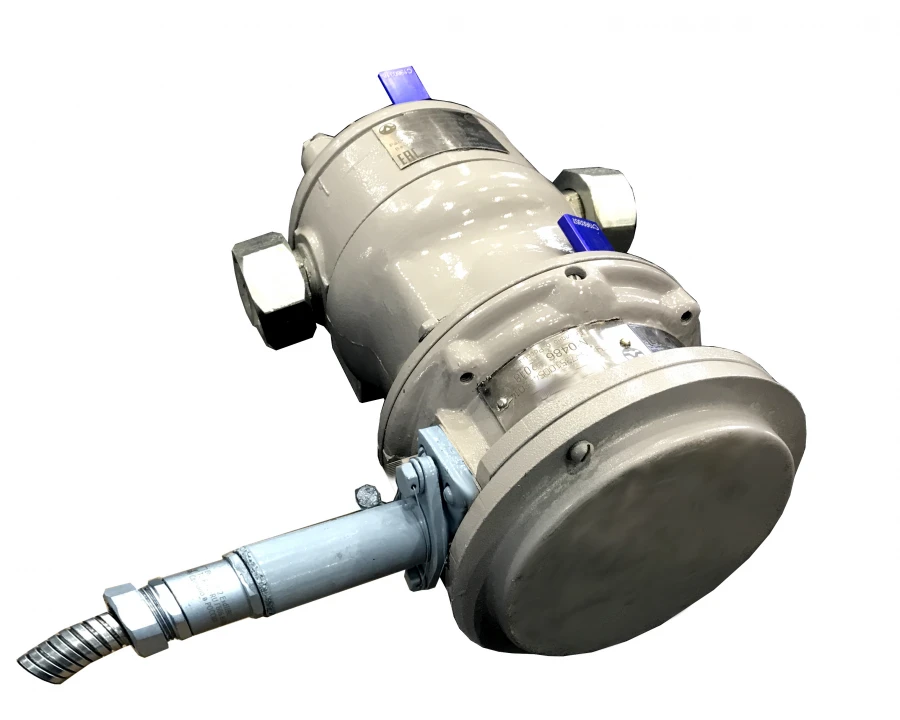

Liquid meter SZh-PPO-25-1,6-DI-O-5 Nipple 03-75-0.00.00.00-12 (1,1-6,0 cSt; PG 0,5)

Fluid counters with oval gears PPO are designed to measure the volumetric quantity of non-aggressive petroleum products. Counting device - DI-O5. Diameter of the conditional passage 25mm.

The flowing part of the meters is made of materials:
- body - aluminium AK9M2 GOST 1583-93;
- oval gear - aluminium AK9M2 GOST 1583-93;
- seals - rings GOST 18829-73 3826-s-NTA TU 38.0051166-98;
- bronze-graphite bearings.

Liquid meters with oval gears have the following competitive advantages:
- improved metrological characteristics (accuracy class up to 0.15);
- possibility to use the counter on viscous media (up to 300 cSt);
- competitive price and time-proven quality.

In this configuration JSC "Prompribor" supplies liquid meter with oval gears, with the required nominal passage, complete with an intelligent sensor DI-O-5 (having pulse and interface output RS-485). At the customer's request, additionally can be supplied and...
