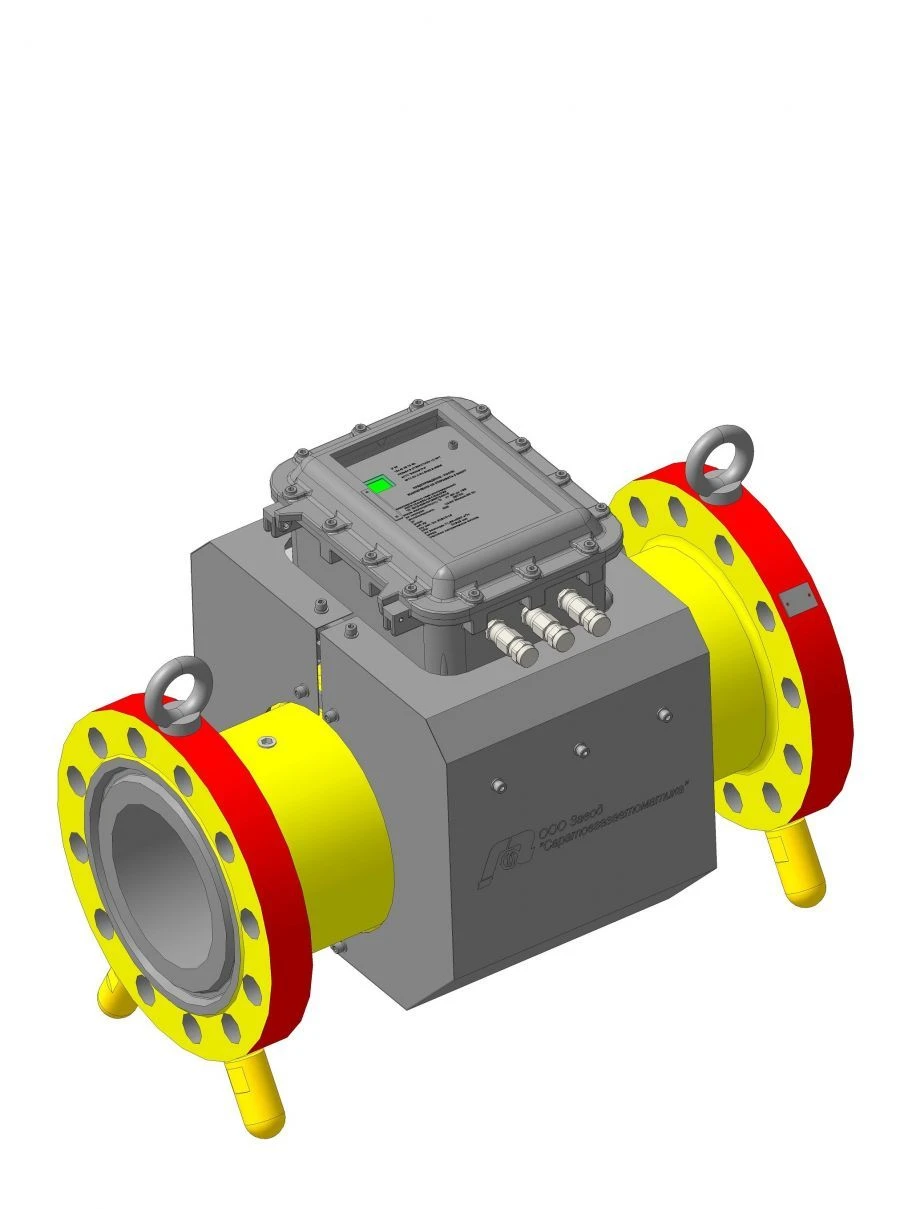

Ultrasonic gas flowmeters-counters UVIR

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Gas flowmeters-counters ultrasonic UVIR modifications UVIR 16, UVIR 12,
UVIR 08, UVIR 06, UVIR 04, UVIR 02 are designed to measure the volumetric flow and
volume of gas in operating conditions and calculations of volume flow and volume of gas reduced to standard conditions, as well as for measurement of gas volume flow and volume of gas
to standard conditions, as well as for calculations of mass flow rate and mass of gases, including natural and free oil.
including natural and free oil gases.

Specifications

Mark UWIR

Application For measurements of volume (mass) flow rate and volume (mass) of gas (including natural, associated (free) oil and air) under operating conditions and calculations of volume flow rate and volume of gas reduced to standard conditions.

Working pressure 0...32 MPa

Nominal diameter SBVVBG mm

Measured flow rate range under operating conditions 0.7...111000

Measured flow velocity range 0.1...40

Tolerance limit of basic relative error of gas volume flow and volume measurement under operating conditions 0.5 %

Operating medium temperature -50...70 °C

Ambient air temperature -60...55 °C

Relative humidity, max. 98 %

Limits of permissible absolute error when converting resistance to temperature value 0.15 °C

Limits of permissible reduced error when converting current into pressure value on pressure measurement channel 0.1 %

Пределы допускаемой относительной погрешности при вычислении массового расхода и массы газа, объёмного расхода и объёма газа, пр 0.01 %

Average MTBF 70000

UVIR versions UVIR02, UVIR04, UVIR06, UVIR08, UVIR12, UVIR16

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
