Flow transmitter TPR

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

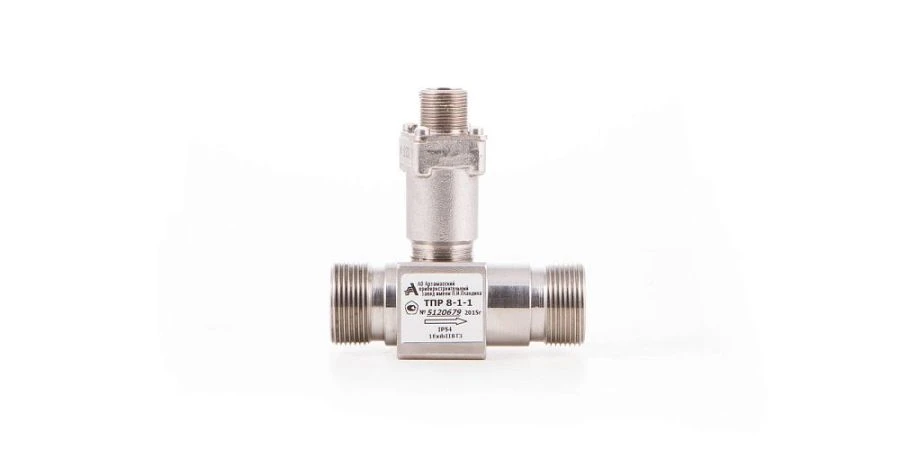

Turbine flow converters TPR are designed to convert the volumetric flow rate of liquid into a frequency electric signal of sinusoidal form. The area of application of converters - bench equipment, technological installations, metering points of various liquids, as well as in the composition of other equipment. Measured medium: non-aggressive lubricating liquids (hydrocarbon fuels, hydraulic system liquids, industrial oils); non-aggressive non-lubricating liquids (water, alcohol, ammonia); single-phase cryogenic liquids (oxide, energen); aggressive liquids (amyl melange I). Depending on the diameter of the nominal passage, modifications are produced: TPR1, TPR2, TPR3, TPR4, TPR5, TPR6, TPR7, TPR8, TPR9, TPR10, TPR11, TPR12, TPR13, TPR14, TPR15, TPR16, TPR17, TPR18, TPR19, TPR20. Degree of protection against penetration of foreign objects, dust and moisture - IP54. Explosion protection marking - IExidIIBT6X. Interval of verification is 1 year. Warranty period of 18 months.

Technical Specifications

Meter type	Stationary
Measured flow rate range	TPR1: 0.003-0.01 l/s; TPR2: 0.004-0.016 l/s; TPR3: 0.005-0.025 l/s; TPR4: 0.008-0.04 l/s; TPR5: 0.012-0.06 l/s; TPR6: 0,02-0,1 l/s; TPR7: 0,03-0,16 l/s; TPR8: 0,05-0,25 l/s; TPR9: 0,08-0,4 l/s; TPR10: 0,12-0,6 l/s; TPR11: 0,2-1,0 l/s; TPR12: 0,25-1,6 l/s.
Diameter of nominal bore DU	TPR1-TPR2: 4mm; TPR3-TPR6: 6mm; TPR7-TPR8: 10mm; TPR9: 12mm; TPR10-TPR11: 15mm; TPR12-TPR13: 20mm; TPR14: 25mm; TPR15: 32mm; TPR16: 40mm; TPR17: 50mm; TPR18: 60mm; TPR19: 80mm, TPR20: 100mm.
Kinematic viscosity of measured medium	Up to 100 mm2/s (sST).
Medium temperature for aggressive liquids	-60 to +50 degrees Celsius
Medium temperature for non-aggressive and single-phase cryogenic liquids	-200 to +200 degrees centigrade

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
