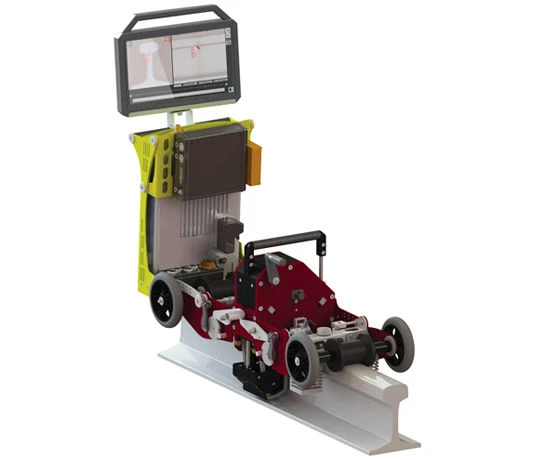

Ultrasonic defectoscope on phased arrays for inspection of welded joints of rails "Kalmar 32+"

Ultrasonic Inspection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Rail flaw detector on phased arrays - KALMAR©, is designed for acceptance and scheduled ultrasonic inspection of welded joints of electrocontact and aluminium-thermite welding of railway rails (R50, R65, R75). There are two versions: stationary for use in the FPR and mobile - moved along the railway rail thread. Kalmar 32+ provides full scanning of the entire cross-section of the welded joint with automatic determination of the coordinates of occurrence and sizes of echo-signal bundles reflected from defects. Field of application - mainline and industrial railway tracks, underground railway tracks and rail-welding plants (RWP).

Technical Specifications

Operating conditions: -relative air humidity at 25 C, not more than	95 %
Parameters of electric power supply from the built-in battery: -capacity, not less than	16
AC mains power supply parameters: -AC frequency	SBVVBG
Measuring range of distance from the front edge of the transducer prism to the projection of the defect on the scanning surface	1...400 mm
Nominal pulse amplitude value of the excitation pulse generator	75...125 V
Gain control range	0...80
Input angle range	-90...90
Setting range of probing pulse duration	10...1000
Adjustment range of excitation delays of phased array elements (PA)	0...40000
AC mains power supply parameters: - AC voltage	220 V
Parameters of electrical power supply from the built-in battery: -nominal voltage	B1/B8 2100/900 MHz V
Overall dimensions of the flaw detector: electronic unit (height x width x length), not more	SBVVBG mm
Overall dimensions of flaw detector: mechanical scanner (height x width x length), not more	450 mm
Weight of flaw detector, not more	Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kg
Operating conditions: - ambient air temperature	-20...40 °C
Average service life, at least	5 a
Average MTBF	18000
Maximum value of sweep duration	250
Total number of focal laws	1023
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
