Phased array ultrasonic rail defectoscopes PHASAR

Ultrasonic Inspection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

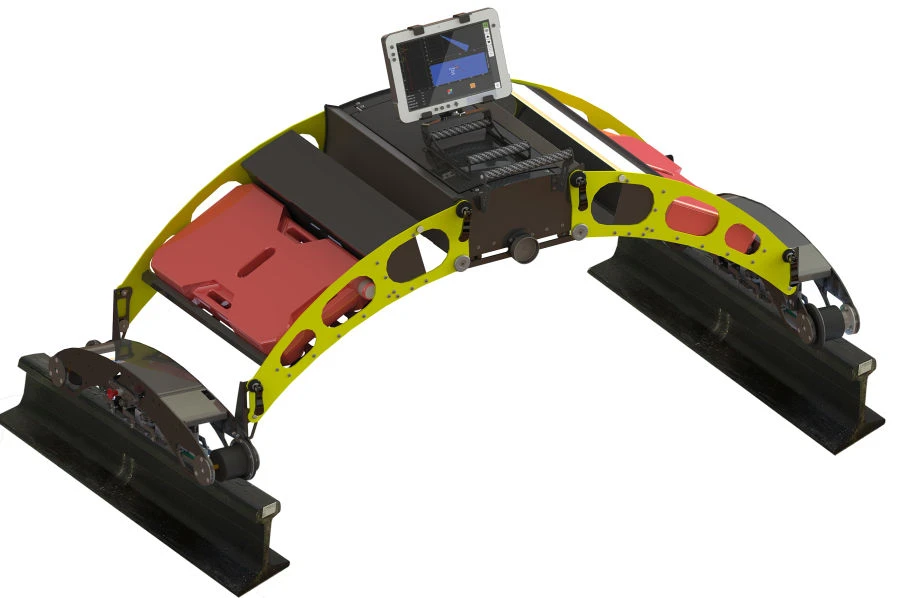

FASAR ultrasonic rail defectoscopes on phased arrays are designed to measure the depth of the defect, the distance from the front edge of the transducer prism to the projection of the defect on the scanning surface during continuous inspection of rails at a speed of up to 4 km/h to detect, record and decipher signals from defects located along the entire length and cross-section of railway rails. The flaw detectors are available in the following modifications: FAZAR-01 and FAZAR-02. The flaw detector consists of: a specialised flaw detector trolley (single-strand - for FAZAR-01 or double-strand - for FAZAR-02), electronic unit, input-output device (tablet), FAZAR scanner (for FAZAR-02 - 2 scanners) with ultrasonic sensors and a container with contact liquid. The electronic block and the tablet are connected by Ethernet cable or Wi-Fi wireless network. Transducers on the FR and/or conventional low-frequency transducers are connected to the electronic unit.

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Maximum value of sweep duration 250

Measuring range of distance from the front edge of the transducer prism to the projection of the defect on the scanning surface 1...400 mm

Nominal pulse amplitude value of the excitation pulse generator 100 V

Gain adjustment range in steps of 0.5 0...80

Input angle range in increments of 1 -90...90

Setting range of probing pulse duration with step 4 10...1000

Setting range of excitation delays of FR elements with step 5 0...40000

Total number of focal laws 1023

Parameters of electrical power supply from the built-in battery: -nominal voltage 15 V

Parameters of electric power supply from the built-in battery: -capacity, not less than 24

Overall dimensions of electronic block FAZAR (height x width x length), max. 60 mm

Overall dimensions of flaw detector FAZAR-01 (specialised single-strand flaw detector trolley): height x width x length, not mor 1050 mm

Overall dimensions of flaw detector FAZAR-02 (specialized two-strand flaw detector cart): height x width x length, not b 650 mm

Weight of FAZAR-01 flaw detectors, not more 30 kg

Weight of FAZAR-02 flaw detectors, not more SBVVBG kg

Operating conditions: - ambient air temperature -40...50 °C

Relative air humidity at +25 °C (without condensation), not more than 95 %

Average service life, at least 5 a

Average MTBF 18000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
