Ultrasonic bath UZV NP(DN)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

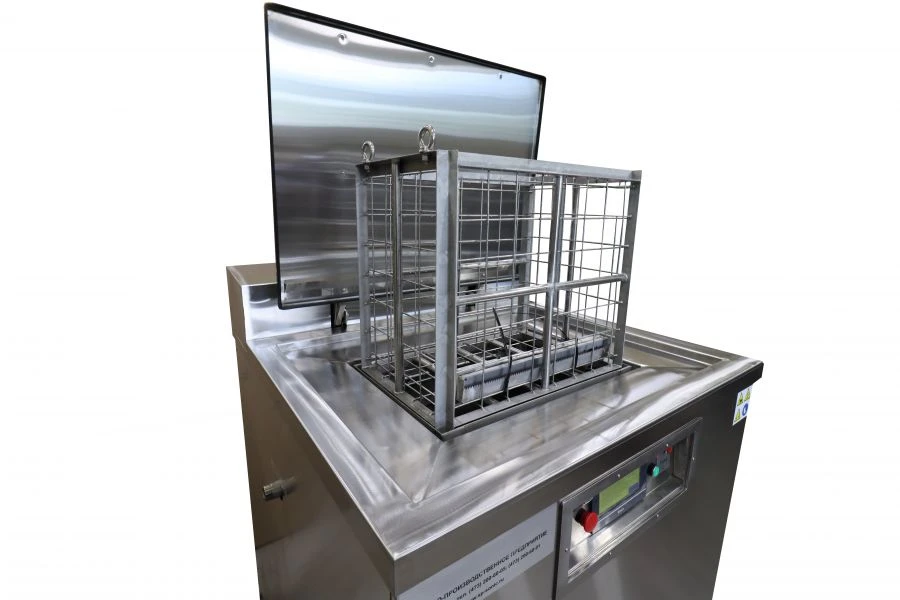

Ultrasonic baths UZV NP(DN) with immersed ultrasonic emitters located inside the working volume, which allows to transfer all the radiated energy into the washing solution. The ultrasonic generators automatically adjust their power depending on the volume, density and level of the liquid. The emitters and the working tank of the bath are made of high quality steel resistant to alkalis and acid solutions. The bath is equipped with a loading basket. Controlled by touchscreen monitor. Own software. The lid and liner of the bathtub are made of brushed stainless steel. The lid, on bearing hinges with a mechanism that facilitates opening, with sound and heat insulation. For the most efficient cleaning of large parts of complex geometry and large mass, additional elements are used at the customer's request: lifting bottom, increased number of emitters, rocking mechanism. All this ensures efficiency, durability and reliability of the ultrasonic bath and convenience of its operation
Specifications
Voltage
220 V
Weight, not more
160 kg
Service life, at least
2 a
Operating frequency
25
Volume of working vessel
250 l
Power consumption
8 kW
Dimensions (DxWxH), mm
1205x1215x1140
Level of suppression of industrial noise with frequency of 50 and 100 Hz, not less than
70
Instrument power supply type
Impulse
PC communication interface
Modpas
Operating temperature
80 °C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
