Pipeline overlapping device type GAKS-S-150/300

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

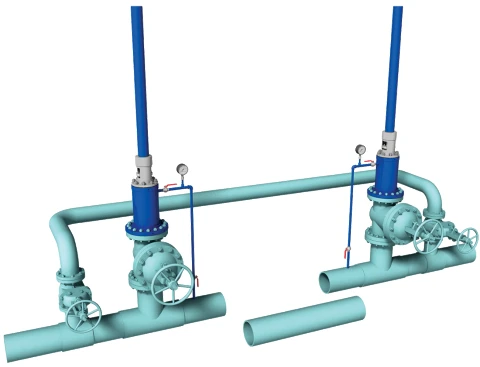

The pipeline shut-off device is designed for temporary hermetic shut-off on one or both sides of the repaired section of the pipeline under pressure of the transported medium (water, gas, oil). It is used during emergency and planned works on pipeline systems, pipeline tie-in, tie-in of jumpers, repair or replacement of damaged sections, re-laying of lines and other pipeline reconstruction works. The device consists of three systems: hydraulic drive, system of sealing units and system of power plugs with sealing seal. Installation of the shut-off device on the pipeline is carried out on a welded socket (tee) of 300 mm height through a full-bore wedge gate valve. The shut-off process is controlled from the control panel. Control devices located on the control panel of the oil station and on the shut-off device itself provide convenient measurement and observation of the technological process and its modes.

Technical Specifications

Weight of the device without replaceable parts	500 kg
Overall dimensions	Ø585×2914 mm
Power sources	Oil station GAKS-D-1-32 (up to 32,0 MPa); power supply ~380 V, 50 Hz
Working stroke of hydraulic cylinder piston	1700 mm
Drive type	Hydraulic drive
Pipe wall thickness	up to 20 mm
Operating pressure in the pipeline	Up to 10.0 MPa
Nominal bore of diverter and wedge gate valve	150; 200; 250; 300 mm
Nominal bore of the pipeline to be shut off	150; 200; 250; 300 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
