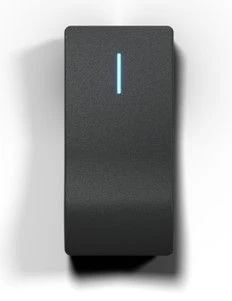

UEM Mifare/NFC SKD Reader for Access Control Systems Available for Import

UEM Mifare/NFC SKD Reader for Efficient Access Control Systems

Security and Fire Control Panels
Manufacturer: MICROEM OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The UEM Mifare/NFC SKD reader can be used in security systems, access control and management (ACS), electronic documents (passports, driving licences), club cards, transport payment systems and similar applications. It provides data exchange with contactless cards and smartphones with NFC technology support in order to extract unique identifiers from the open or protected memory area of cards and smartphones, and their subsequent transfer to the ACS controller for further decision-making on granting access. RFID reader UEM Mifare/ICode/NFC ANT reader modul? supports a full set of functions in accordance with the standards ISO14443, ISO15693.

Specifications

Assignment
RFID reader is designed for use in security, access control and management systems (ACS), maintenance of electronic documents (passports, driver's licenses,), club and hotel cards, transportation payment systems.
Supported card types
Mifare Classic, Mifare Classic EV1, Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, Mifare Plus, Mifare Plus EV1, Mifare DESfire, Mifare DESfire EV2 , SmartMX, ICode SLI, ICode SLIX, NFC Forum Tag Types 2, 4
Supported protocols
ISO14443A/B, ISO15693, NFC P2P Passive Initiator (ISO18092).
Operating frequency
13.56 MHz
Current consumption
max. 300 mA
Power supply voltage
5-30 ?
Working distance
At least 2 cm
Antenna type
built-in
Interfaces
RS485/Wiegand/1-Wire
Indication
Sound, light
Ambient air operating temperature range
-40ºC to +50ºC

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
