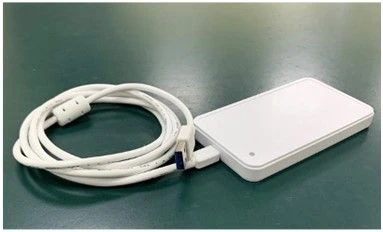

UEM Mifare/ICode/NFC USB Reader for Access Control Systems

Available for Import

UEM Mifare/ICode/NFC USB Reader for Access Control and Security Systems

Security and Fire Control Panels

Manufacturer: MICROEM OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

RFID reader UEM Mifare/ICode/NFC reader module UEM Mifare/ICode/NFC USB SAM4 RFID tag reader module

Description

The UEM Mifare/ICode/NFC USB reader can be used in security, access control and management (ACS), electronic documents (passports, driving licences), club cards, transport payment systems and similar applications. It provides data exchange with contactless cards and smartphones with NFC technology support in order to extract unique identifiers from the open or protected memory area of cards and smartphones, and their subsequent transmission to the ACS controller for further decision-making on granting access. RFID reader UEM Mifare/ICode/NFC ANT reader modul? supports a full set of functions in accordance with the standards ISO14443, ISO15693

Specifications

Assignment

RFID reader is designed for use in security, access control and management systems (ACS), maintenance of electronic documents (passports, driver's licenses,), club and hotel cards, transportation payment systems.

Supported card types

Mifare Classic, Mifare Classic EV1, Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, Mifare Plus, Mifare Plus EV1, Mifare DESfire, Mifare DESfire EV2, SmartMX, ICode SLI, ICode SLIX, NFC Forum Tag Types 2, 4

Supported protocols

ISO14443A/B, ISO15693, NFC P2P Passive Initiator (ISO18092).

Operating frequency

13.56 MHz

Current consumption

max. 300 mA

Power supply voltage

Interfaces

USB

Antenna type

built-in

Working distance

up to 8 centimeters

Indication

Sound, light

Ambient air operating temperature range

-25 ºC to +85 ºC

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
