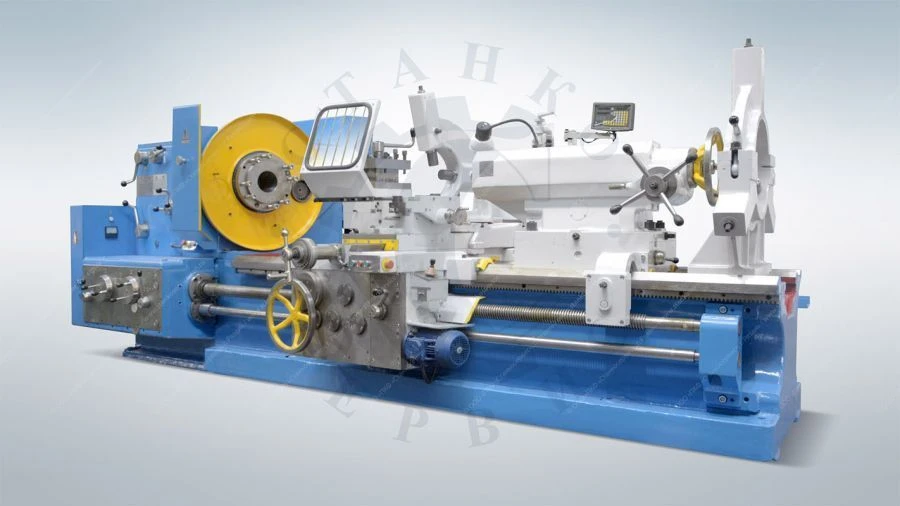

Turning and screwcutting machine 1N65GF1-1

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Technical Specifications

Type of product according to PP RF 616	Turning and screw-cutting machines (universal, with CNC, CNC)
Height	1770 mm
Width	2200 mm
Length	4140 mm
Roughness of the cylindrical surface of the sample product after its finish machining	Ra 2.5 µm
Main motion drive power	22 kW
Highest cutting force Pz	41000
Highest torque on the spindle	9.5 kNm
Step limits for machinable modular threads	0.5-24 module
Pitch limits of inch threads to be cut	24-1/4 threads per 1 inch
Step limits of metric threads to be cut	1...96 mm
Maximum lateral movement of the slide	700 mm
Maximum longitudinal movement of the slide	700 mm
Diameter of the cylindrical bore in the spindle	128 mm
Largest diameter of the workpiece to be mounted and machined above the slide	650 mm
Longest workpiece length	1000 mm
Machine weight	10.15 t
Total power of electric motors installed on the machine tool	23.68 kW
Largest diameter of the workpiece to be machined above the bed	1000 mm
Largest diameter of the workpiece to be mounted above the bed	1000 mm
Digital display device	UZI, HAP
Largest diameter of the workpiece to be mounted and machined above the slide	650 mm
Spindle speed limits	5...500
Accuracy class of machine tools according to GOST 8-82	?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
