Turning and screw-cutting machine of model 1M63H

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

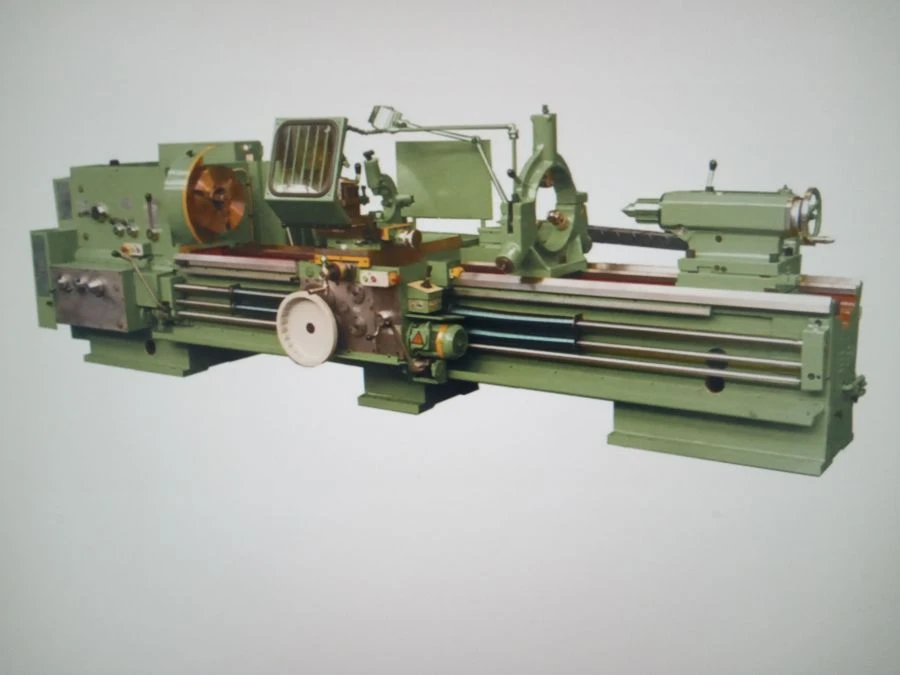

The lathe and screw-cutting machine model 1M63N can produce external turning, boring, drilling, taper machining, thread cutting: metric, modular, inch, pitch, multi-threading. Technical characteristics and rigidity of the machine allow to fully use the capabilities of high-speed and carbide tools in the processing of both ferrous and non-ferrous metals. For machining of conical surfaces and tapered threads the machine can be equipped with a cone ruler on special order. Machine design does not provide for the possibility of equipping with electronic control devices (CNC) on the contour on 2 or more axes.

Technical Specifications

Type of product according to PP RF 616	Metal cutting lathes without numerical program control
Length	2950 mm
Width	1780 mm
Height	1550 mm
The largest diameter of the workpiece mounted above the bed, not less than	900 mm
Maximum length of the workpiece to be processed, not less than	1500 mm
Number of caliper working feed stages	32 pc
Height of the tool to be mounted	32 mm
Machine dimensions	1780x1550x3740 mm
Machine weight	4840 kg
Spindle speed limits	10...1250
Maximum movement of the tailstock quill	220 mm
Total power of electric motors installed on the machine tool	16..22 kW
Maximum mass of the workpiece to be installed	3500 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
