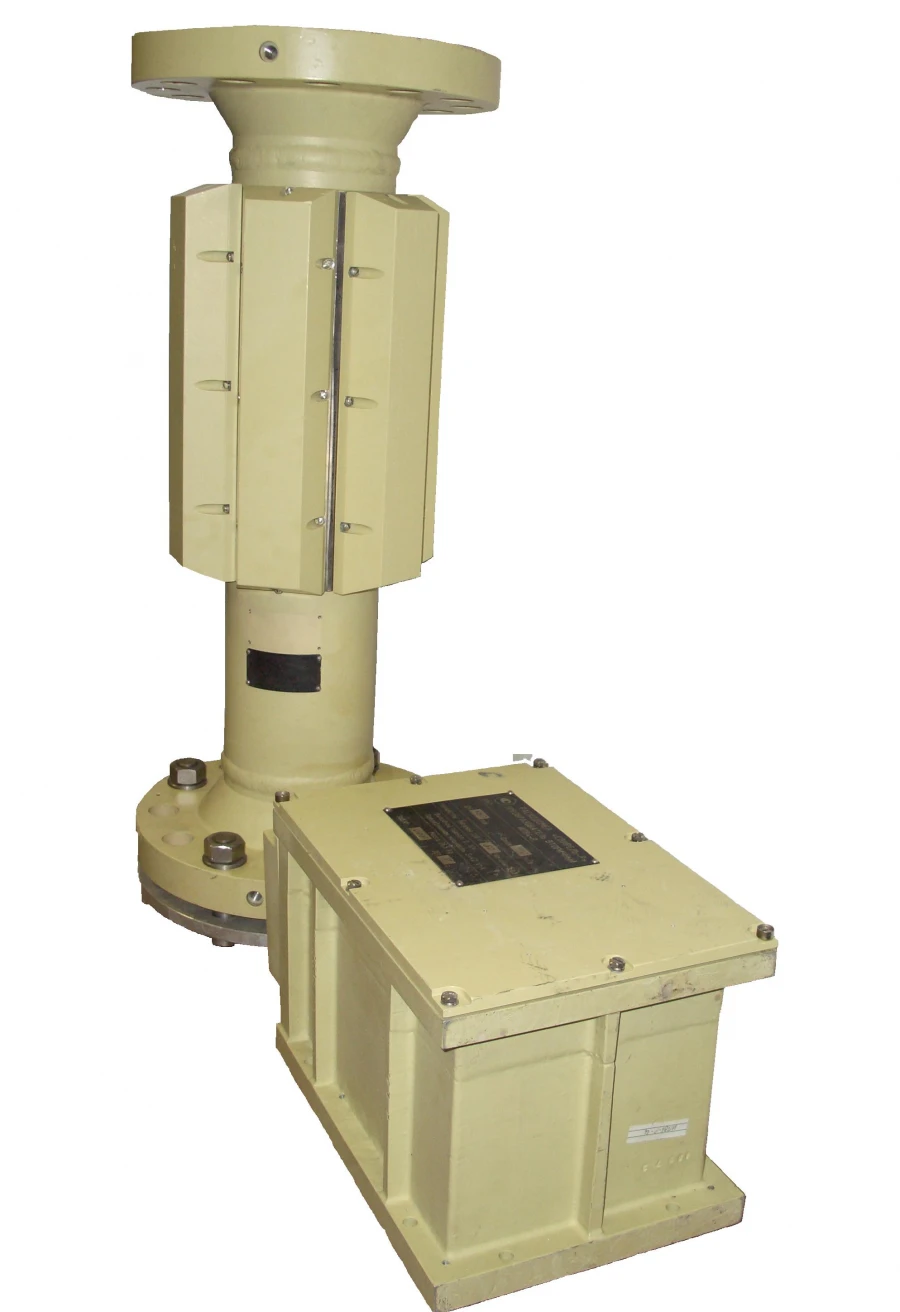

Liquid flowmeters SWIREL-RM

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Flow meters are designed to measure the flow rate of distilled water and high purity water in
pipelines. The principle of operation of flow meters is based on the measurement of time intervals between ultrasonic vibrations (pulses) directed alternately along the flow and against it. Calculation of volumetric flow rate is based on the difference between the time intervals of the oscillations travelling along and against the liquid flow. The flowmeters have three independent measurement channels with four galvanically isolated outputs in each measurement channel.

Specifications

Mark Liquid flowmeters

Application Flow measurement of distilled water and high purity water

Working pressure 2...10 MPa

Nominal bore diameter 150 mm

Upper measurement limit 400

Power supply voltage 27 V

Power consumption from DC mains 20 W

AC mains power consumption 40

Type of medium distilled water, high purity water

Limits of basic permissible reduced error in the range from 10 to 100% of the upper limit of measurement 0.6 %

Limits of basic permissible reduced error in the range from 3 to 10% of the upper limit of measurement 0.8 %

Degree of protection IP67

Interval between verifications 3 a

Temperature of the medium 0...180 °C

Ambient temperature -10...55 °C

Probability of failure-free operation 0.95 for 26000 h

Assigned service life 20 a

Information update time 0.01

Name WHISTLE-RM

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
