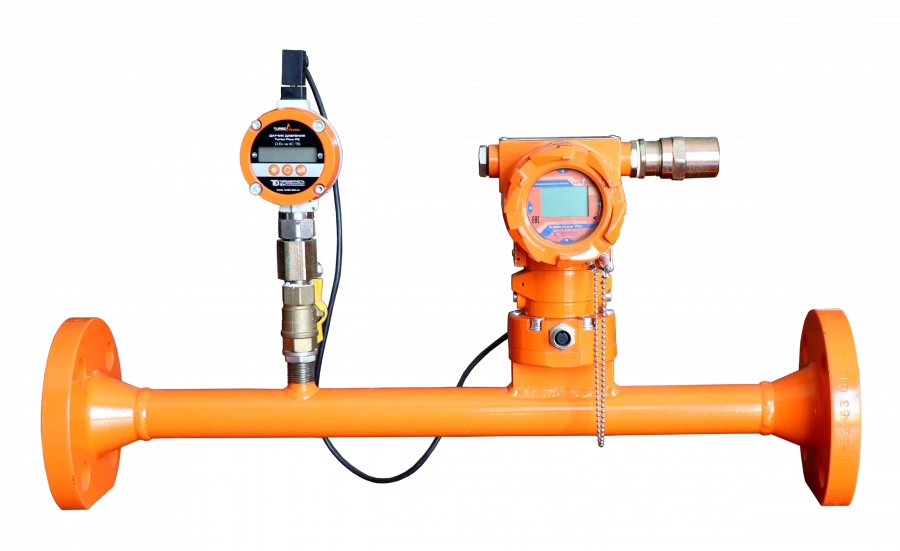

Turbo Flow TFG Thermal Anemometer Flow Meters for Accurate Gas Measurement

Flow Measurement Devices

Manufacturer: Turbulence-Don LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Flow meters are designed to measure the mass flow rate of gas and volume flow rate of gas reduced to standard conditions (natural, free (associated) oil and other gases and mixtures of gases of known composition, including those with aggressive components) and calculate the mass and volume of gas reduced to standard conditions. Flowmeters consist of one or several flow converters (hereinafter - FC) and a flowmeter cabinet. For remote reading of information the flowmeter can be equipped with a remote terminal.

The terminal is connected with the sensor via RS-485 wired interface. Depending on the design of PP and diameter of the measuring pipeline (hereinafter - IT) the flowmeters have the following modifications: H - for installation in IT DN 25-100; S - for installation in IT DN 50-1400. Depending on the pressure in the IT the flowmeters have versions A, B, C, D, E - from 16 MPa to 32 MPa.

The flowmeters have measuring ranges: from -60 to +70 C, from -60 to +300 C.

Specifications

Mark

Turbo Flow TFG

Application

Measurements of gas mass flow rate and volume flow rate of gas reduced to standard conditions (natural, free oil, etc. including those with aggressive components) and calculation of mass and volume of gas reduced to standard conditions.

Working pressure

1...32 MPa

Measuring range of gas volume flow rate under standard conditions (TFG-S; TFG-H)

0.05...1200

Dynamic range, Qmin/Qmax (TFG-S; TFG-H)

1:600; 1:1500

Nominal diameter DN (TFG-S; TFG-H)

50 to 1400; 25 to 100

Tolerance limits of relative error when measuring gas mass flow rate and gas volumetric flow rate reduced to the station

± 1.0 in the range 0.015 Qmax?Q?Qmax; ± 2.0 in the range Qmin?Q<0.015 Qmax

Tolerance limits of relative error when measuring gas mass flow rate and gas volumetric flow rate reduced to the station

± 1.5 in the range 0.015 Qmax?Q?Q?Qmax; ± 2.5 in the range Qmin?Q<0.015 Qmax

Upper limit of absolute pressure measurement (UPI)

0.1...32 MPa

Weight of PP, not more

1.5 kg

Average MTBF, not less than

60000

Name

Thermoanemometric flowmeters

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
