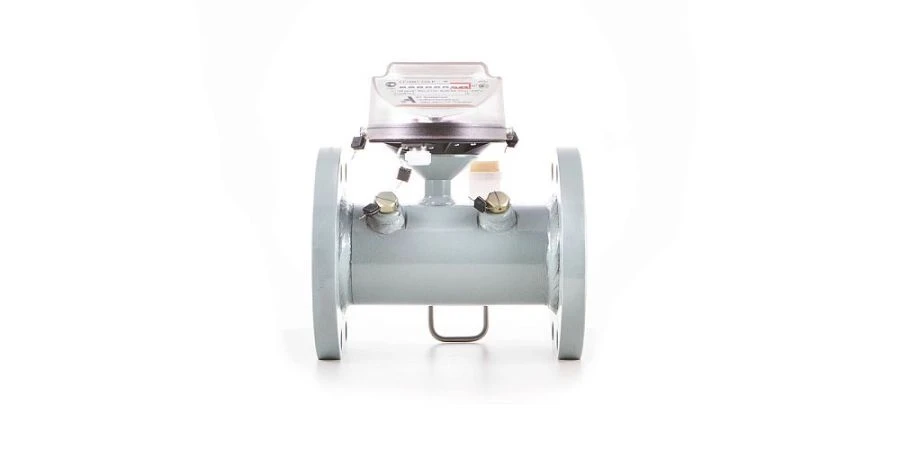

Turbine Gas Meter SG-16MT-65-R for Measuring Clean Natural and Non-Aggressive Gases

Turbine gas meter SG 16MT-65-R (measuring range 1:10) is designed to measure the volume of smoothly changing flows of purified non-aggressive single and multi-component gases (natural gas, associated gas with partial pressure of hydrogen sulfide not more than 0.01 MPa, air, nitrogen, argon, etc. with a density at normal conditions of not less than 0.67 kg/m3) when using them in the installations of industrial and municipal enterprises, and for accounting in commercial operations. Gas meters have a low-frequency output (reed contact), which allows it to be connected to the intrinsically safe circuit of an electronic corrector.

The meter can be installed in the pipeline both horizontally and vertically with the gas flow direction either from bottom to top or from top to bottom. It is necessary to install a filter before the meter to clean gas from mechanical impurities. Inspection interval: 8 years.

Warranty period: 24 months. Service life: not less than 12 years. The meter complies with GOST 28724-90.
