TRINITY ERXXXW server

Digital Computing Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Servers TRINITY are designed for use as part of automation systems for management and production processes as a means of data processing and storage.

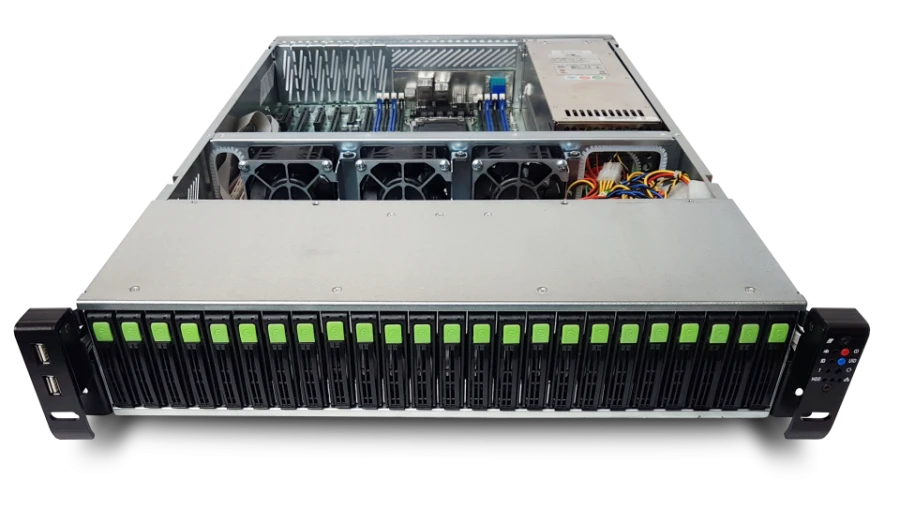

Servers are designed for installation in standard 19" cabinets and racks (from 1U to 4U), have up to two processors (up to 56 cores), up to 2TB of RAM, high-capacity and high-performance disc subsystem (up to 24 drives, including NVMe). Servers are suitable for work as a node of fault-tolerant server clusters, deployment of virtual infrastructure, highly loaded databases, as data storage for video surveillance systems, backup, archiving.

Specifications

Number of installed processors 2 pc

Maximum number of processors 2 pc

Internal storage size 240...16000

RAM size 16...2048

Number of processor cores 4...28 pc

Operating system Optional

Availability of a mouse manipulator Optional

Means of communication LAN Ethernet 10/100/1000 Mbit/s

Disposable media drive DVDRW drive

Internal slots and connectors 3xPCIEx8, 3xPCIEx16

Base frequency of the processor 3.4

Case Form Factor 1-4U

Monitor availability Optional

Form factor 1-4U

Power subsystem Reserved

Data storage subsystem 4-36 drives

Cooling subsystem 3x80mm 13000RPM

Availability of built-in audio speakers absent

Built-in certified information security features Absent

Internal power supply 350...2000 W

Monitor matrix type Depending on the equipment

Monitor diagonal 12...24

Manipulator sensor type mouse Depending on the equipment

Keyboard availability Optional

Architecture x86

Chipset intel c621

Processors Up to 2 Intel Xeon Scalable 2nd Gen

Front panel and indication In stock

External connectors 2xrj45, 3xusb3.0, dsub, rs232

Rear I/O panel 2xRJ-45, 3xUSB 3.0, VGA (DSUB), management port RJ-45

Available expansion slots RS-232, USB 3.0

Operating temperature range 5-40

Operating temperature range 5...40

Network port type Ethernet

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
