Available for Import

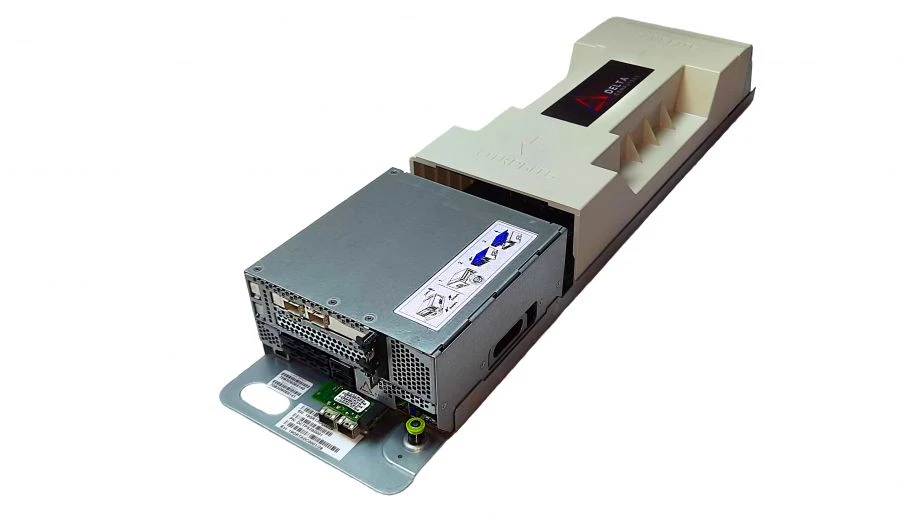

Delta Tioga Pass Server I22A8U2S00

Digital Computing Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Delta Tioga Pass server I22A2S0D21 Delta Tioga Pass Server I22A4U1S01 Delta Tioga Pass Server I22A6S0D20 Delta Tioga Pass Server I22A8S0D01 Delta Tioga Pass I22A4S0D21 server

Delta Tioga Pass Server I22A6U0D00 Delta Tioga Pass I22A2U0D21 server Delta Server Tioga Pass I22A0D0D21 Delta Tioga Pass Server I22A6S0D02 Delta Tioga Pass Server I22A10U0D00 Delta Tioga Pass Server I22A2S0D02

Description

The product represents a functional device of a computer network providing services to workstations, personal computers or other functional devices.
The server configuration is a high-performance computing device with data storage and processing function. The product design supports hot-swap function. This function allows you to replace the damaged node, without the need for a complete power failure of the server, which minimises interruptions in the operation of the
system.

Specifications

Rear panel I/O interfaces PCIe x8 via AirMax - 2 pcs (optional)

Power supply DC 12.2 V ± 0.4 V from the current busbar

Dimensions (W x L x H) 2OU, 174 mm x 880 mm x 89 mm

Testing interface 14-pin server debug card connector (front panel)

USB connectors USB 2.0/3.0 - 1 pc USB Type C - 1 pc

Video interface Mini VGA (front panel)

Platform management interface IPMI via RJ-45 port (front panel)

Expansion card connectors (OCP) mezzanine OCP 2.0 card (a+b)

Storage subsystem (in the disk add-on) Slots for 8 x 2.5" U.2 7mm NVMe SSDs

Storage subsystem (on motherboard) - optional Slots for 2 2.5" 7mm SATA SSDs

Number of cooling fans 2

Weight 6.9...7.3 kg

Storage subsystem (on the motherboard) Slots for 2 M.2 NVMe x4* SSDs

Maximum RAM capacity Up to 4096 GB (using 16 256 GB RAM modules)

Type of RAM RDIMM/LRDIMM

RAM bus frequency 2400/2666/2933 MHz

Type of RAM DDR4

Processor chipset intel® C621

Interface connection of processors intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.

Processor family intel® Xeon® Scalable processor / 2nd intel® Xeon® Scalable processor

Processor connector Two socket p LGA 3647 (socket p)

Type of product according to PP RF 616 Computational electronic digital machines, supplied as systems for automatic data processing

Number of RAM slots 16

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
