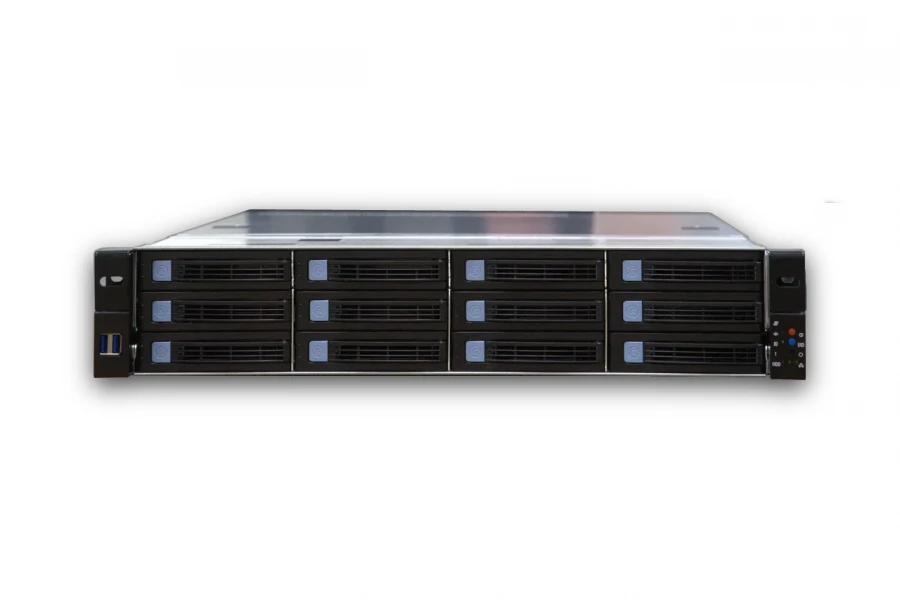

TRINITY ER220DHR-M6 server TVLF.466531.012
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Servers TRINITY ER220DH are designed for use as part of automation systems for management and production processes as a means of data processing and storage. Servers are designed for installation in standard 19" cabinets and racks (2U), have up to two processors (up to 56 cores), up to 3TB of RAM, 8 PCIe expansion slots, high capacity and high performance disc subsystem (up to 16 drives, including NVMe). Servers are suitable for work as a node of fault-tolerant server clusters, deployment of virtual infrastructure, highly loaded databases, as data storage for video surveillance systems, backup, archiving.
Specifications
Monitor availability
Optional
Operating system
Optional
Case Form Factor
2U
Base frequency of the processor
1...4
Number of processor cores
4...56 pc
RAM size
4...3072
Means of communication
4*1G Ethernet RJ-45
Availability of built-in audio speakers
no
Operating temperature range
5-35
Internal power supply
1600 W
Built-in certified information security features
Optional
Built-in certified information security features
Optional
Internal power supply
1600 W
Operating temperature range
5-35
Availability of built-in audio speakers
no
Means of communication
4*1G Ethernet RJ-45
RAM size
4...3072
Number of processor cores
4...56 pc
Base frequency of the processor
1...4
Case Form Factor
2U
Operating system
Optional
Monitor availability
Optional
Keyboard availability
Optional
External connectors
2*USB 3.0 on the front panel
Architecture
x86
Rear I/O panel
2*USB 3.0, VGA, 4*1G Ethernet RJ-45, 1G RG-45 IPMI
Available expansion slots
2-4*PCIe 3.0 x16 FHHL, 2-4*PCIe 3.0 x8 FHHL, 2*PCIe 3.0 x8 LP
Power subsystem
Reserved
Data storage subsystem
12*3.5" hot-swap on front panel, 2*2.5" hot-swap on rear panel, 2*M.2 NVMe
Cooling subsystem
4*80mm
Front panel and indication
Power, fault, drive and network interface activity indication
Built-in certified information security features
Optional
Internal power supply
1200 W
Operating temperature range
5-35
Availability of built-in audio speakers
no
Means of communication
4*1G Ethernet RJ-45
RAM size
3072
Number of processor cores
4...56 pc
Base frequency of the processor
1...4
Case Form Factor
2U
Operating system
Optional
Monitor availability
Optional
Keyboard availability
Optional
External connectors
2*USB 3.0 on the front panel
Architecture
x86-64
Rear I/O panel
2*USB 3.0, VGA, 4*1G Ethernet RJ-45, 1G RG-45 IPMI
Available expansion slots
2-4*PCIe 3.0 x16 FHHL, 2-4*PCIe 3.0 x8 FHHL, 2*PCIe 3.0 x8 LP
Power subsystem
Reserved
Data storage subsystem
12*3.5" hot-swap on front panel, 2*2.5" hot-swap on rear panel, 2*M.2 NVMe
Cooling subsystem
4*80mm
Front panel and indication
Power, fault, drive and network interface activity indication
Front panel and indication
Power, fault, drive and network interface activity indication
Cooling subsystem
4*80mm
Data storage subsystem
12*3.5" hot-swap on front panel, 2*2.5" hot-swap on rear panel, 2*M.2 NVMe
Power subsystem
Reserved
Available expansion slots
2-4*PCIe 3.0 x16 FHHL, 2-4*PCIe 3.0 x8 FHHL, 2*PCIe 3.0 x8 LP
Rear I/O panel
2*USB 3.0, VGA, 4*1G Ethernet RJ-45, 1G RG-45 IPMI
Architecture
x86
External connectors
2*USB 3.0 on the front panel
Keyboard availability
Optional
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
