Available for Import

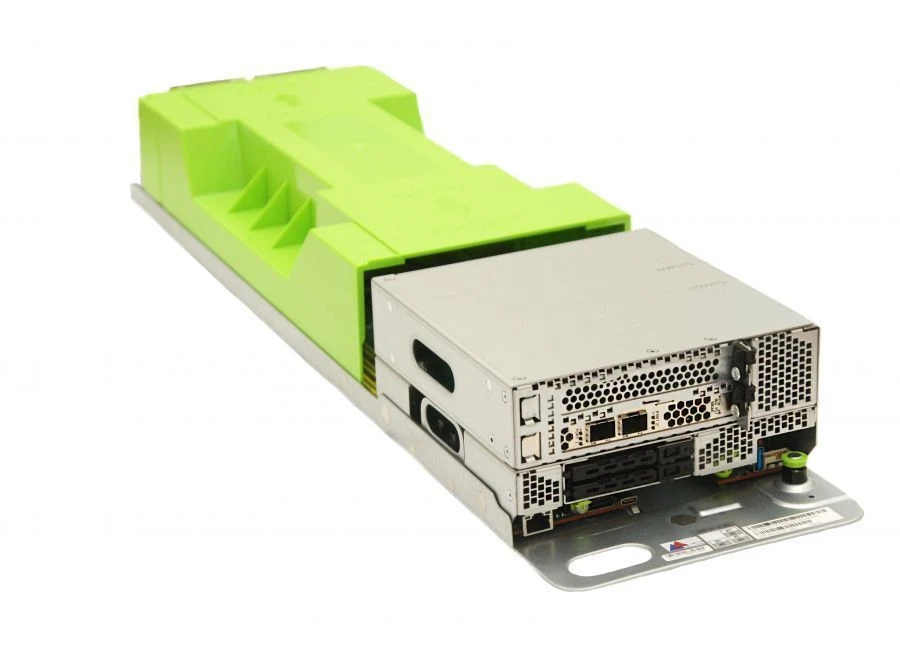

Delta Tioga Pass I22W2S0D02 server (VRTG.467569.017KDDS.SKUTPBASE.1-10)

Data Processing Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Delta Tioga Pass server is designed in accordance with open standards and architecture Open Compute Project (OCP), is the basis of energy-efficient and cost-effective data centres, carries a wide range of workloads, allowing you to build computing clusters, distributed storage systems and create hyperconverged infrastructure. Delta Tioga Pass server has high energy efficiency and density, easy to maintain. Managed remotely, through the embedded software "Delta BMC". Supports "hot-swap" of its own and installed inside high-speed solid state drives. By combining the advantages of OCP architecture, compatibility with Open Rack server racks and high performance, the cost of ownership is reduced and the competitive advantage is increased.

Technical Specifications

Weight (net weight)	6.9...7.3 kg
Rear panel I/O interfaces	PCIe x8 via AirMax - 2 pcs (optional)
Power supply	DC 12;2V ± 0;4V from the server rack current bus
Dimensions (W x L x H)	2ou; 174 mm x 880 mm x 89 mm
Number of cooling fans	2 pcs.
Testing interface	14-pin server debug card connector (front panel)
USB connectors	USB 2.0/3.0 - 1 pc, usb type c - 1 pc (on the front panel).
Video interface	Mini VGA (front panel)
Platform management interface	ipmi via rj45 port (front panel)
Expansion card connectors (OCP)	Mezzanine ocp 2.0 card (a+b)
Expansion card connectors	PCIe x 16 FHHL - 2 pcs.
Storage subsystem (in the disk add-on)	slots for 2 2;5" 7mm sata hot-swappable 2.5" SSDs
Storage subsystem (on motherboard) - optional	Slots for 2 M.2 NVMe x4 SSDs
Storage subsystem (on the motherboard)	Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size M.2 SSD
Maximum RAM capacity	Up to 3072 GB (using 12 256 GB RAM modules)
Type of RAM	Rdimm/lrdimm
RAM bus frequency	2400/2666/2933 MHz
Type of RAM	DDR4
Number of RAM slots	12 pcs.
Processor chipset	intel® c621
Interface connection of processors	intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.
Processor family	Intel® xeon® scalable processor / 2nd intel® xeon® scalable processor
Processor connector	Two socket p LGA 3647 (socket p)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
