TransLED SMP 20C variable information road sign

Railway & Traffic Control Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

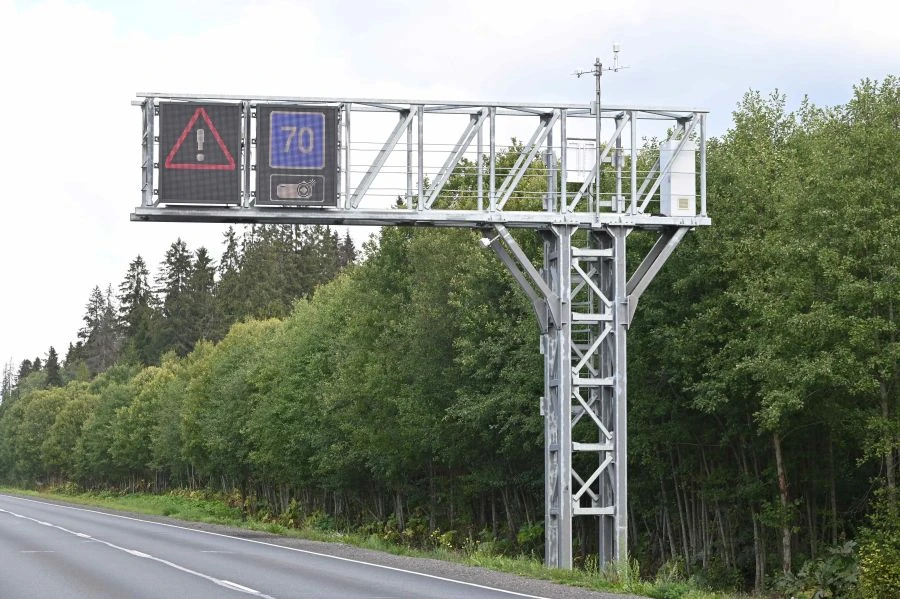

Variable Information Road Sign (VIRS) is an electrical optoelectronic information, signalling, safety and traffic control device for motorways of all categories, lanes and speed limits, in and out of settlements, railways, tramways, inland waterways, parking facilities, ports and airfields. ZPI is intended to be used as terminal devices for displaying road signs in accordance with the Traffic Rules of the Russian Federation. ZPI complies with GOST R 52289-2004, GOST R 52290-2004 and GOST 32865-2014, has a certificate of conformity and technical specifications approved by the Federal Centre for Road Traffic Safety of the Ministry of Internal Affairs of Russia. ZPI provides the possibility of simultaneous display of pictograms of road signs and placards on them, if necessary.

Specifications

Designation TransLED SMP 20C

Data transfer Management Interface: Ethernet 10/100

Equipment operation Operating temperature: class T1 to class T3 (minus 40 degrees Celsius to plus 60 degrees Celsius) at 95% relative humidity under atmospheric pressure conditions of 84 to 106.7 kPa (630 to 800 mmHg).

Power supply Designed for operation from industrial AC mains with frequency from 49 to 51 Hz in the range of supply voltages from 191 V to 253 V. Power consumption in operating mode from 220V network, not more.

Product resistance to contamination Product resistance (pollution class) to electrically conductive pollution or dry non-conductive pollution which becomes conductive when moisture condensation is applied: D3.

Protection against external influences GOST 14254-2015 IP code

Protection against electric shock, GOST 12.2.007.0-75 Not less than class I

Classification of colometric parameters according to GOST 32865-2014 Width of light beam: B5

Display area Image format and number of display elements (pixels) in the matrix: 64 ? 80. Pitch of display elements: 20 mm

Weight of equipment 100...110 kg

Overall height dimensions of the equipment 1560...1720 mm

Overall dimensions of the equipment in width 1080...1400 mm

Parameter of visualization surface by height 1440...1600 mm

Visualization surface parameter by width 960...1280 mm

General data ZPI can operate independently through road stations and also be integrated into automated traffic control systems by means of manufacturer's protocol and provide operation in accordance with specified algorithms and scenarios.

Compliance with regulatory documents GOST R 52289-2004, GOST R 52290-2004, GOST 32865-2014, Certificate of Conformity No. 04IDU101.RU.C03303, technical specifications RTSGE.676657.002TU, approved by FCU NTs BDDD of the Ministry of Internal Affairs of Russia

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
