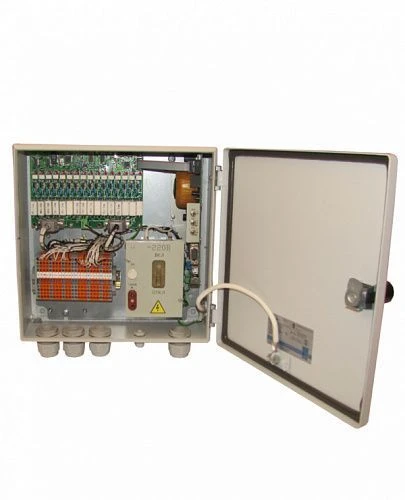

Road controller small-sized MDK DAKT468219005001

MDK is designed to control LED traffic light objects at intersections. Structurally, MDK consists of a metal cabinet in which all components are placed. The cabinet has an outward-opening door with a rubber seal around the perimeter, which has a handle with a lock on the front side. On the back side of the cabinet there are elements of cabinet fastening to the lighting support. The bottom of the cabinet is equipped with cable glands. Inside the cabinet there is a metal panel on which modules, terminal blocks, MDK power switch, service socket are mounted. The main unit is the CPU module with the control panel mounted on it. No less important is a 16-channel control unit for LED emitters, which serves up to 8 directions of movement. The control panel is a set of toggle switches and is designed to set the modes of operation of the MDK.
