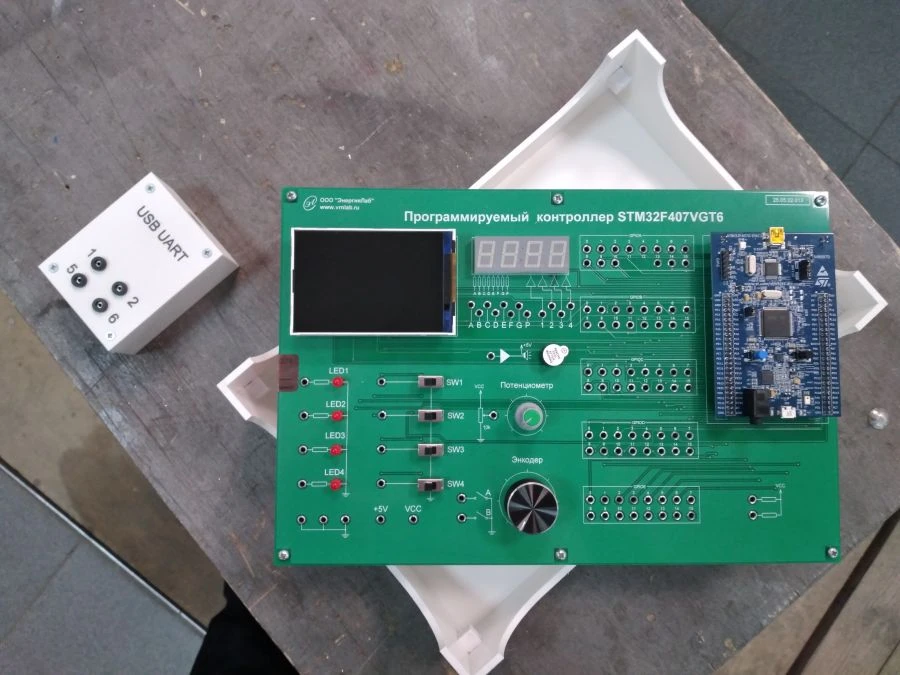

Training laboratory stand "Programmable controller" ELB-020.003.05

The educational laboratory stand "Programmable controller" is designed for laboratory-practical classes in institutions of primary vocational, secondary vocational and higher vocational education, for obtaining basic and advanced professional knowledge and skills. The stand is made according to TU 32.99.53-001-09519063- 2019.
Technical specifications:
ParameterValue
Mains voltage, V220
Mains voltage frequency, Hz50
Power consumption, VA20
Overall dimensions, WxHxHxB (one module)300x200x65
Operating temperature range, °?+10...+35
General technical requirements:
1. The set is made according to the modular principle, which provides convenience and simplicity of the electrical circuit set, reduces the number of possible errors in the circuit set, makes it easier to check it when performing laboratory work.
2. Each module has a mnemonic diagram of the installed elements and devices on the front panel.
