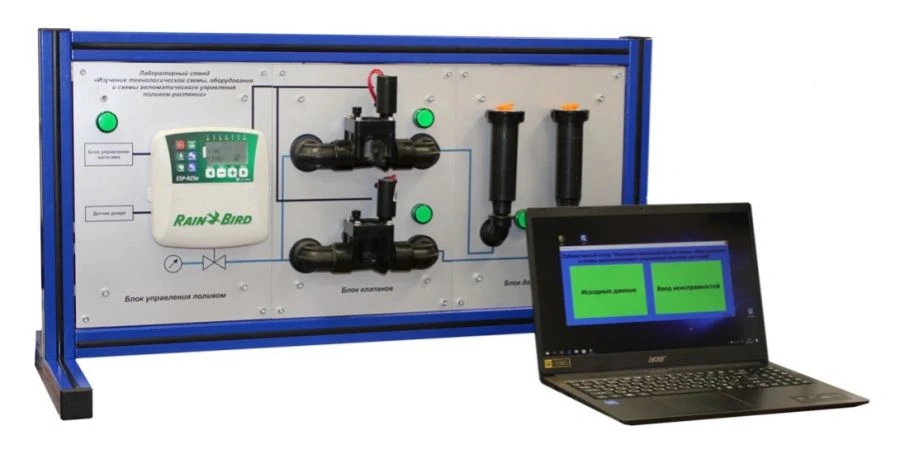

Laboratory complex "Study of technological scheme, equipment and scheme of automatic control of plant irrigation"

Presents the blocks of automatic control system of plant irrigation, installed in a frame made of aluminium profile. Equipment blocks are installed in a mounting box, 3 pieces, made of polyvinylchloride, overall dimensions, mm: length - 300, width - 220, depth - 120. Controls and elements of the sprinkler system are installed in front panels made of aluminium sheet, 3 pcs., 2 mm thick. Service symbols are printed on the aluminium panel by metallography.
Functionality: check, automatically adjust the system operation and irrigation time according to the conditions of the irrigation system and the environment, or according to the parameters defined by the system operator.
The environmental conditions are set (simulated) in the software menu installed on the laptop. The operation of sprinklers and valves is simulated by switching on the LEDs on the front panel of the units.
