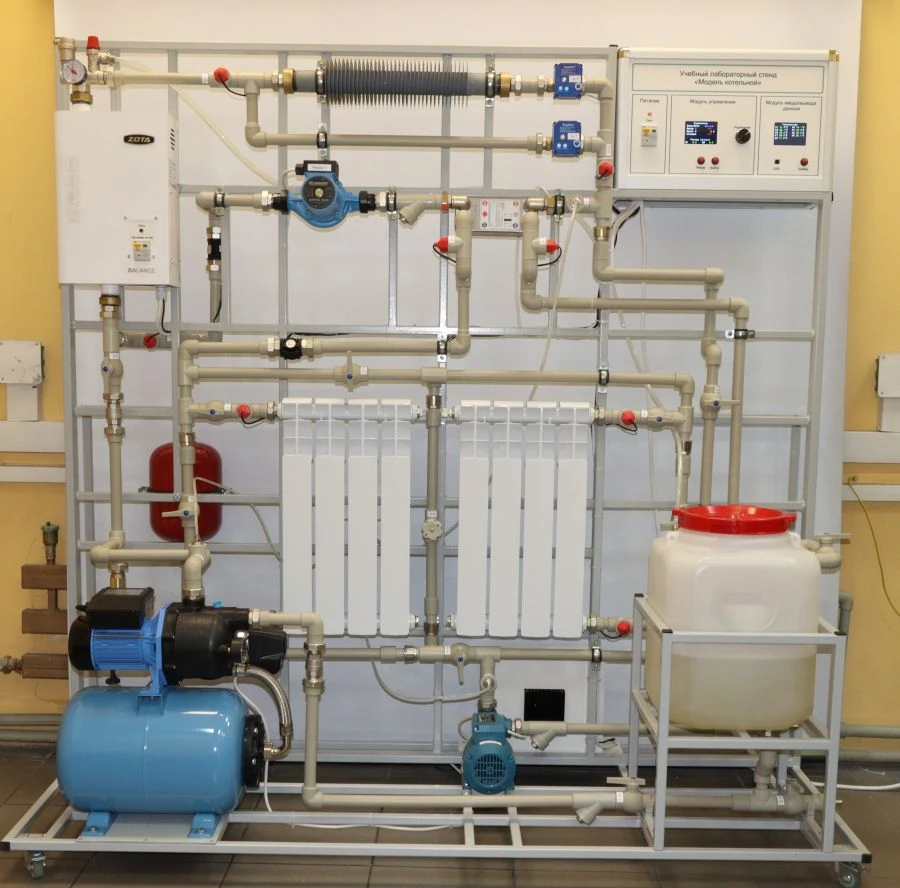

Training laboratory stand "Boiler room model" ELB-160.008.03

Teaching laboratory stand "Boiler room model" is designed for laboratory-practical classes on disciplines: ACS, basics of heat engineering in higher and secondary vocational educational institutions and allows working on it at temperatures from +10 to +35 ° C and relative humidity of 75% at +25 ° C.
Technical specifications.
Overall dimensions of the stand:
Length - 1600 mm;
Width - 700 mm;
Height - 1600 mm.
Highest power consumption: 3.5 kW.
Power supply from AC mains:
Voltage 220V, frequency 50Hz.
Stand composition.
The stand is a frame base made of metal profile painted with powder paint. The base has swivelling wheel supports with brakes for convenient movement and fixation of the stand.
On the frame base the control unit of the stand and the system of pipelines and investigated sections are mounted. The control unit, made of metal profile with ABS plastic housing, light colour with...
