Available for Import
traction motor DTC-800E
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

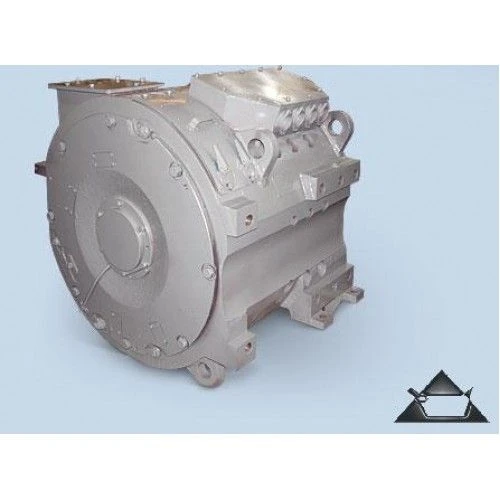

DTK-800E traction motor is designed to drive wheel pairs of mainline DC freight electric locomotives of 2(3)ES4K type.
The motor is made for axle-axle suspension with motor-axle rolling bearings and is used as a part of the mechanical drive of the first class with double-sided torque transmission.
The traction motor is a six-pole compensated DC machine with series excitation and independent ventilation system.
For ease of maintenance in operation of the collector-brush unit, the motor is equipped with a swivelling traverse. Insulated coils of main and additional poles together with cores are impregnated in epoxy compound and after baking represent a single monolithic block.
The electric motor complies with the requirements of the technical regulations of the Customs Union TR TS 001/2011.
The motor is made for axle-axle suspension with motor-axle rolling bearings and is used as a part of the mechanical drive of the first class with double-sided torque transmission.
The traction motor is a six-pole compensated DC machine with series excitation and independent ventilation system.
For ease of maintenance in operation of the collector-brush unit, the motor is equipped with a swivelling traverse. Insulated coils of main and additional poles together with cores are impregnated in epoxy compound and after baking represent a single monolithic block.
The electric motor complies with the requirements of the technical regulations of the Customs Union TR TS 001/2011.
Specifications
Power on shaft
800 kW
Nominal voltage
1500 V
Armature speed
745
