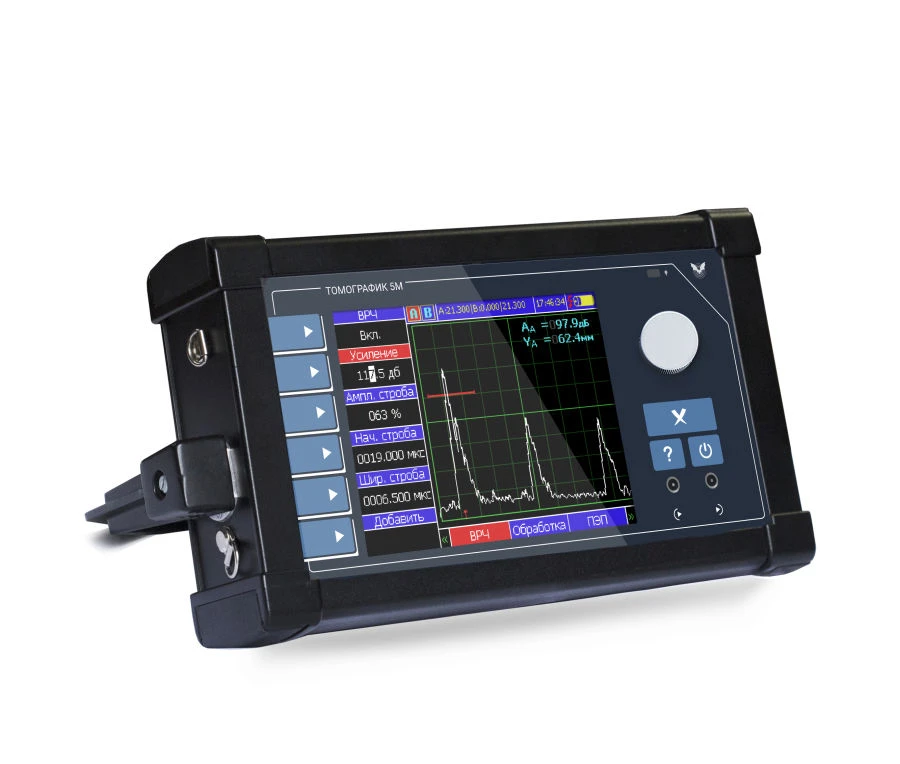

Tomografik 5M universal flaw detector
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Tomographik 5M is a general purpose universal flaw detector using ultrasonic, eddy current flaw detection methods with various types of scanners. Tomografik 5M may include ultrasonic PEPs of P111; P112, P121, P131, P122, E411, eddy current transducers of VTP-2, VTP-3, VTP-4 types, scanners of USO, USK, sliders. Depending on the activated Application, Tomographik 5M implements the functions of various devices: Ultrasonic flaw detector (determination of depth, equivalent area, evaluation of configuration and size of defects, TOFD), eddy current flaw detector, resonance flaw detector, EMA flaw detector, thickness gauge, Structuroscope, strain gauge, videoscope, etc. The Tomographik 5M has a built-in built-in ultrasonic flaw detector. Tomografik 5M has built-in support for multidisciplinary scanners: tomographic, optical, railway scanners, and others. Such functionality is in demand by NDT laboratories for inspection of welded joints, pipe fittings, various metal structures and composite materials.
Technical Specifications
| AC frequency | SBVVBG |
|---|---|
| Battery capacity, not less than | 3 |
| Type of climatic version of flaw detector | C3 according to GOST R 52931 |
| Operating conditions: ambient temperature | -40...50 °C |
| Time of establishing the operating mode, not more | 5 |
| Overall dimensions of the electronic module (DxWxH), max. | 300 mm |
| Weight of electronic unit with built-in battery, not more | 10 kg |
| Average service life (excluding PEEP and battery), not less than | 7 a |
| Time of complete reconfiguration of the device in the presence of PEP parameters and material of the object of control in the ar | 1 |
| Gain setting range | 45...177 |
| Absolute tolerance limits of the threshold indicator setting (dead band) | -0.3...0.3 |
| Discreteness of pulse duration setting, mA | 12.5 |
| Permissible deviation of the half-wave duration setting of the GUI pulse | -10...10 % |
| Operating frequency range | 0.2...10 |
| Excitation pulse generator (EPG) pulse half-wave duration setting range | 25...1250 |
| AC mains power supply parameters: - AC voltage | 100...250 V |
| Minimum dimensions of the detectable surface artificial defect in the form of a risk on a specimen made of ferromagnetic materia | 0.3 mm |
| Minimum dimensions of a detectable surface artificial defect in the form of a risk on a specimen made of aluminium alloy: - dept | 0.3 mm |
| Parameters of electrical power supply from the built-in battery: - rated voltage | 11 V |
| Degree of protection of flaw detector against penetration of dust and water inside. | IP54 according to GOST 14254 |
| Type of product according to PP RF 616 | Instruments and other instruments for measurement, control and testing |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
