Television centring kit (KTVC)

The device is designed for centring and control of lens alignment of optical systems. The use of KTWC contributes to the increase of labour productivity, creation of comfortable working conditions. It eliminates transverse parallax, improves centring accuracy.

Field of application: enterprises of optical industry, scientific and educational institutions.

Instrument Features:
The KTVZ has an interchangeable optical magnification:
- 0.5x magnification allows to observe the complete image of the entire grid;
- 1.6x magnification allows to observe the image of the central fragment of the grid with visible distance between the scale strokes not less than 7 mm.

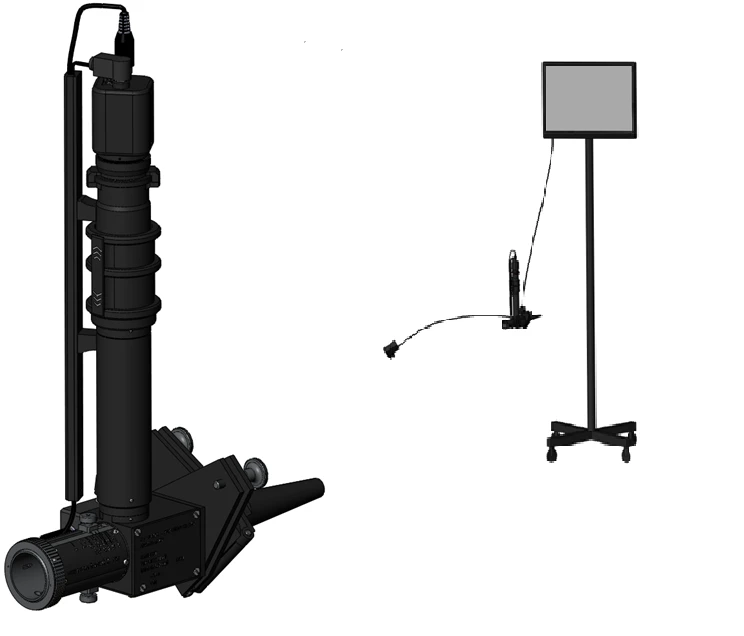

KTVC set:
- autocollimation television module (analogue of Zabelin tube);
- BBK 19LEM-1005/T2C monitor;
- pulse power supply 12V 1A 5.5x2.1;
- harness set;
- GalStand-1.
