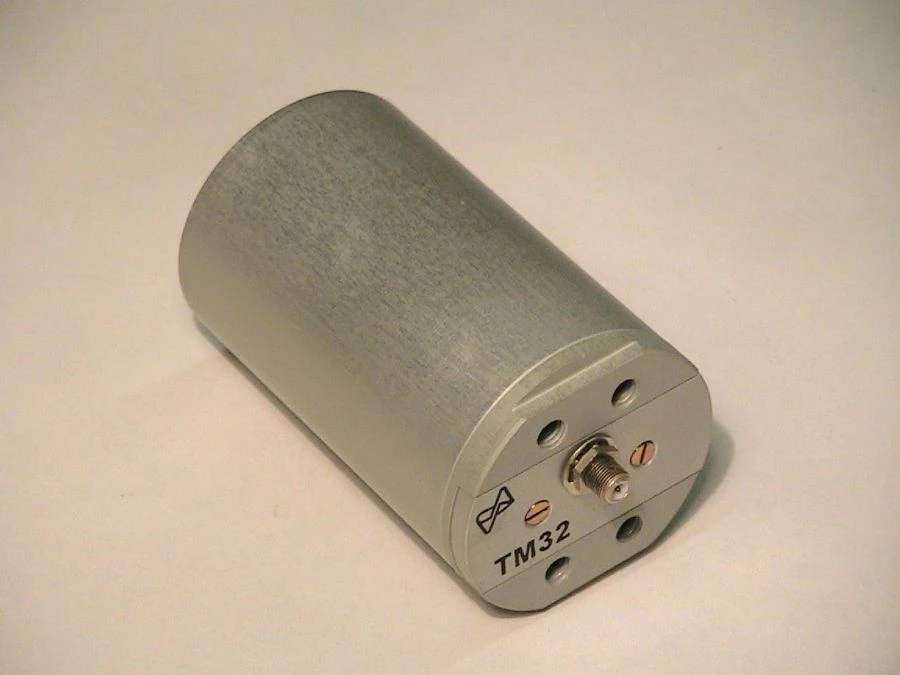

TM 32 Measurement Equipment for Data Collection and Transmission

Available for Import

TM 32 Measurement Equipment for Efficient Data Collection and Transmission

Measurement and Control Devices

Manufacturer: FKP "NIO "GBIP ROSSIY"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Apparatus TM 32 (TM 32M, TM 32IC, TM 32C) ASHV2.009.016 is a set of devices, the functional purpose of which is: collection, conversion and transmission of measurement information in the structure of signals received in the telemetry system RTS-9. TM 32 equipment as part of the tested product fulfils the following functions: -collection of measurement information from sensor equipment; -temporal compaction of measuring input signals; -conversion of discredited signals into a single form of information signal; -transmission of the formed information signal via radio line. Completeness: 1 Hardware TM 32M ASHV2.009.016 1 piece; 1.1 Set of operational documentation in the composition (according to the specification to the contract): 1.1.1 Operation Manual ASHV2.009.016 RE 1 pc; 1.1.2 Formulary ASHB2.009.016 FO 1 pc; 2 Hardware TM 32IC ASHV2.009.021 1 pc; 2.1 Set of operational documentation in the composition (according to the specification to the contract): 2.1.1 Manual for exp...

Specifications

Weight of apparatus

0.35 kg

Range of rated voltages at the inputs of measurement channels

0...2 V

Cross-interference between channels

Consumption current

25 A

Power in pulse at the output of transmitting device

10 W

Maximum influencing temperature

60 °C

Total in-flight operating life of the device, in control checks

SBVVBG

Output impedance for connected sensor equipment

10000 ohm

Maximum permissible positive voltage at the inputs of measuring channels

9 V

Continuous operation time with heat sink - in all conditions, except for increased temperature (above plus 35 º?))

Number of reference pulses in one frame of the main switch

8 pcs

Number of measuring pulses in one frame of the main switch

7 pcs

Number of measurement pulses in one frame of the local switch.

26 pcs

Operating temperature range

-50...50 °C

Continuous operation time without heat dissipation - in all conditions, except elevated temperature (above plus 35 º?))

Minimum impact temperature

-55 °C

Maximum permissible negative voltage at inputs of measuring channels

-0.4 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
